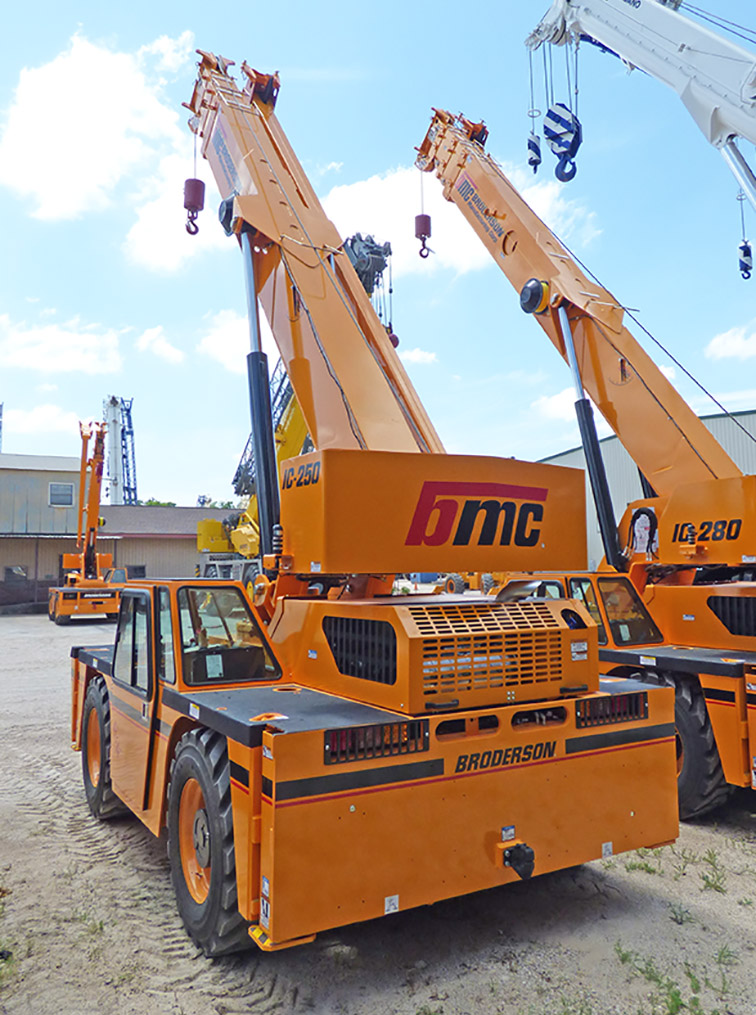

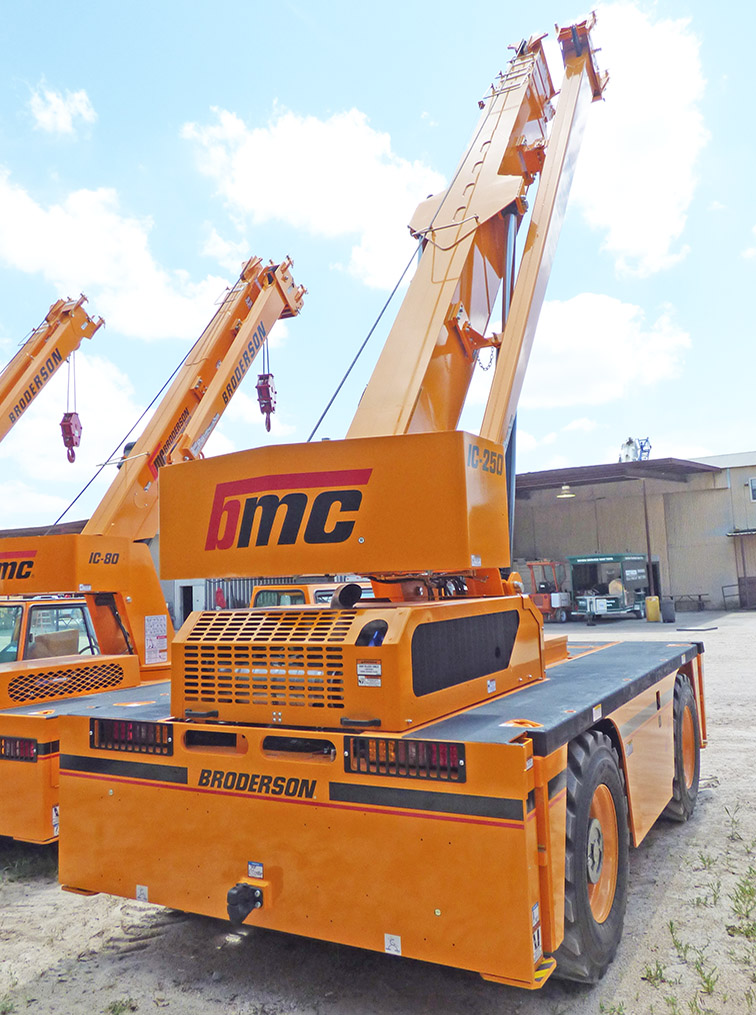

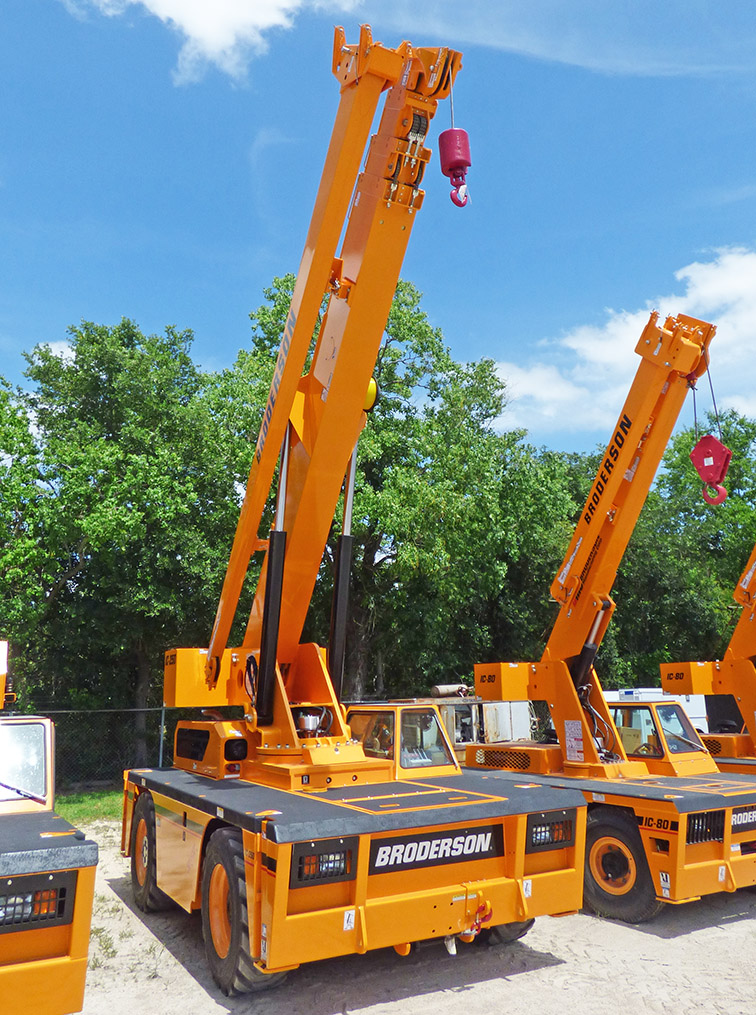

Broderson IC-250-3E

NewIndustrial Cranes

Product Type Industrial Cranes
Manufacturer Broderson
Location Houston, Texas
Model IC-250-3E
Year of Manufacture 2024
Maximum Capacity 18 tons
Maximum Boom Length (ft) 50'
Maximum Tip Height (ft) 80'
Maximum Jib Length (ft) 20'
Engine Cummins QSB3.3L EPA Tier 3 diesel engine
Tire or Track Tire
Tire Size 385/65D22.5, 16-Ply
Width 7'10"
Height 7'11"
Gross Vehicle Weight 37,700 lbs.
Crane Chart

With a heavy-duty design and flexible steering for the operator, the Broderson IC-250-3E is an ideal and versatile crane for any job site.

The IC-250 is an 18 ton capacity industrial carry deck crane. An ideal option for many industrial type job sites, this crane can pick and carry large loads and maneuver into tight areas -all while giving the operator flexible steering capabilities.

One of its key standard features include the Rated Capacity Limiter, which is a feature that warns the operator with visual and audio signals and stops all boom functions in the event of a probable overload. Also included is outrigger sensing, which indicates when jacks are not properly touching the ground or if there has been a change in an outrigger position. Complete with four forward and reverse speeds, the IC-250-3E will provide you with an efficient operating experience.

Jib and Boom
The IC-250-3E has a main boom length of 50′ and a 20′ boom extension that is offsetable to three different positions.

For more information or to receive a sales quote from Scott-Macon Equipment, contact us today.
