Broderson RT-300
| Product Type | Rough Terrain Cranes |
| Manufacturer | Broderson |
| Location | Houston, Texas |
| Model | RT-300 |
| Year of Manufacture | 2013 |
| Maximum Capacity | 15 tons |
| Tonnage Max Capacity Tons | 15 |
| Maximum Boom Length (ft) | 80' |
| Maximum Tip Height (ft) | 87'11" |
| Maximum Jib Length (ft) | 20' |
| Engine | Cummins QSB4.5L, US EPA Tier 4i |
| Tire or Track | Tire |
| Tire Size | 17.5 x 25, 20-ply rating |
| Maximum Travel Speed (mph) | 23 mph |
| Maximum Gradeability (%) | 70% |
| Crane Chart | http://www.bmccranes.com/rt-300/ |

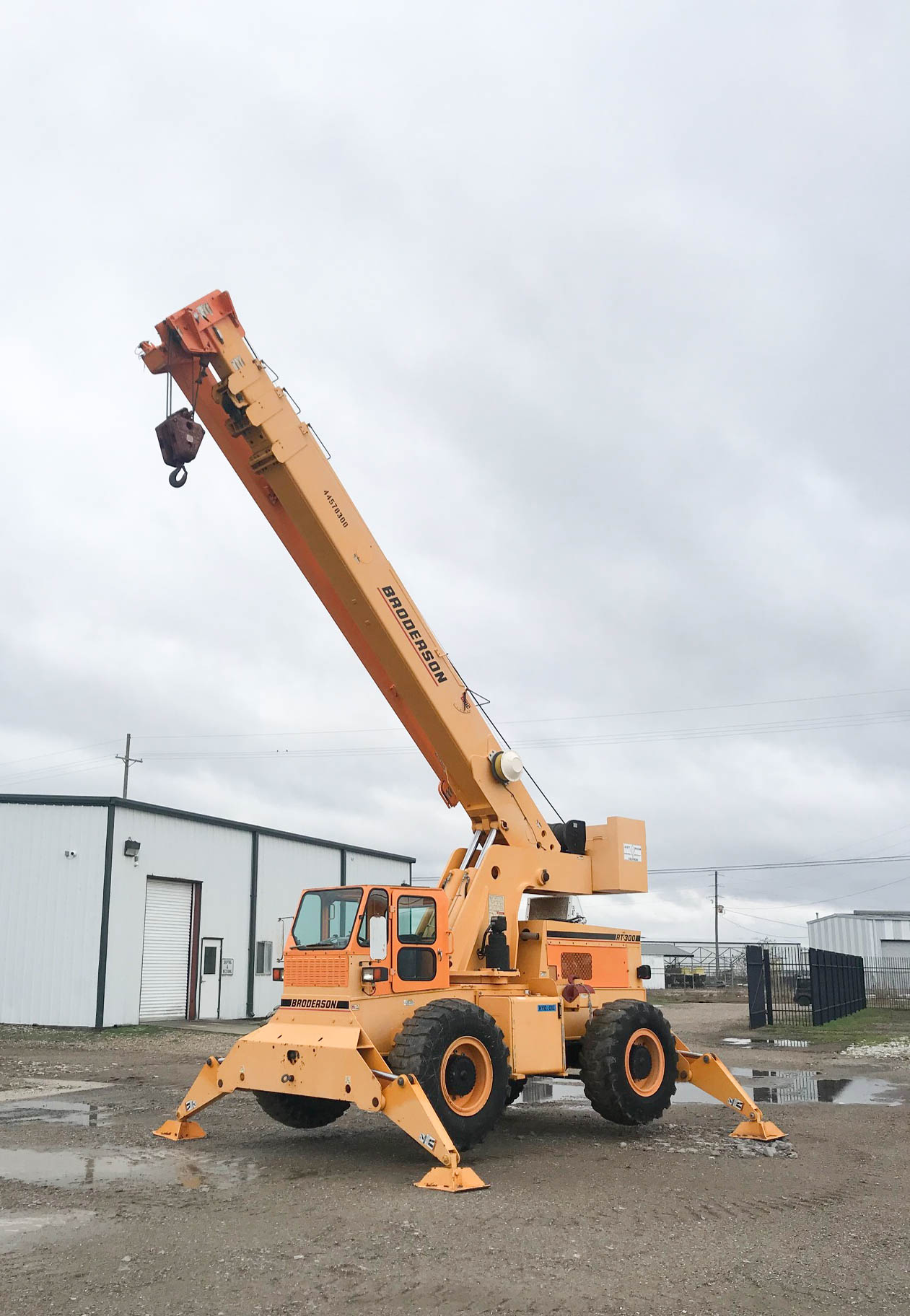

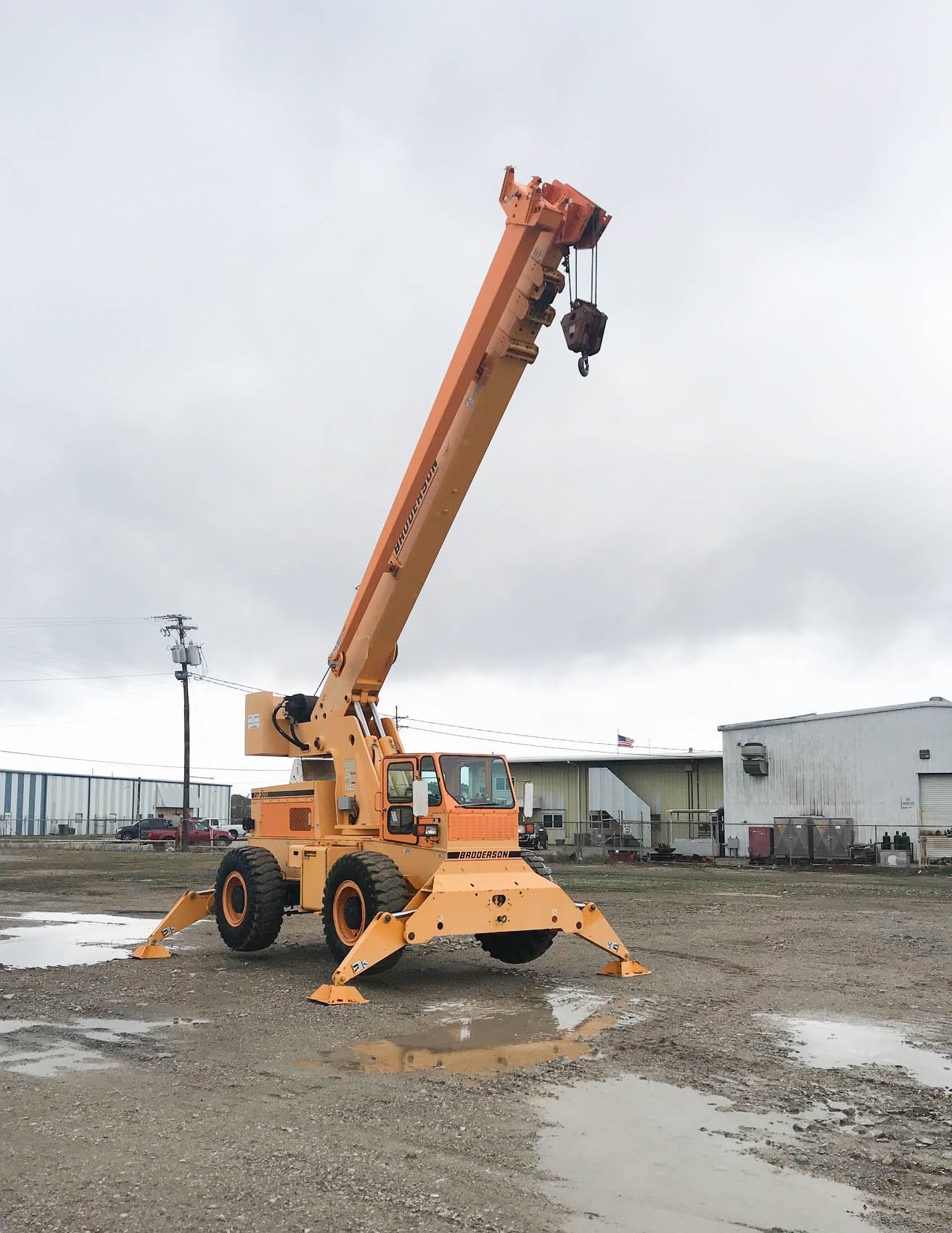

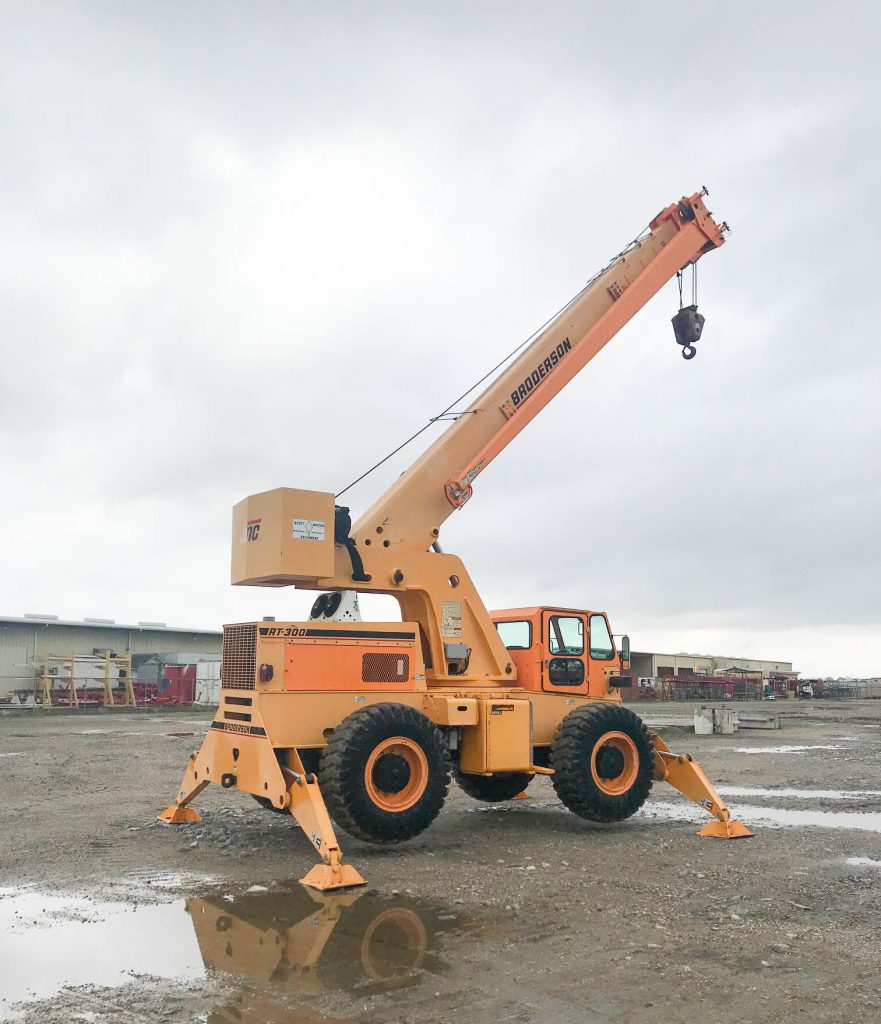

The Broderson RT-300 is a 15 ton capacity rough terrain crane created with a field proven design. This crane comes with a compact footprint as well as a long reach and pick and carry capability. A reliable addition to your fleet, the RT-300 has a tip maximum height of 87’11” and an 80’ horizontal reach. Designed with a sequentially extending and retracting boom, this crane proudly boasts the largest cross-sectional mass in the industry. The RT-300 also features a Rated Capacity Limiter, which warns the operator both audibly and visibly of an impending overload.
Jib and Boom
The RT-300’s main boom has a maximum length of 80’ and a 20’ offsettable boom extension.
If you are interested in additional information or would like to receive a Scott-Macon Equipment quote, contact us today.
Broderson-RT300-G-Load-Chart.pdf
