Grove RT890E

RentUsedRough Terrain Cranes

Product Type Rough Terrain Cranes
Manufacturer Grove
Model RT890E
Year of Manufacture 2011
Serial Number 231606
Maximum Capacity 90 tons
Maximum Boom Length (ft) 142'
Maximum Tip Height (ft) 122'
Maximum Jib Length (ft) 56'
Maximum Counterweight (lbs) 14,000 lbs.
Overall Length (ft) 47'5"
Carrier Length (ft) 27'11"
Engine Cummins 6CTA 8.3L diesel
Tire or Track Tire
Tire Size 33.25 x 29 - 26PR
Rated Capacity 90 tons
Maximum Travel Speed (mph) 18.7 mph
Maximum Gradeability (%) 127%
Crane Chart

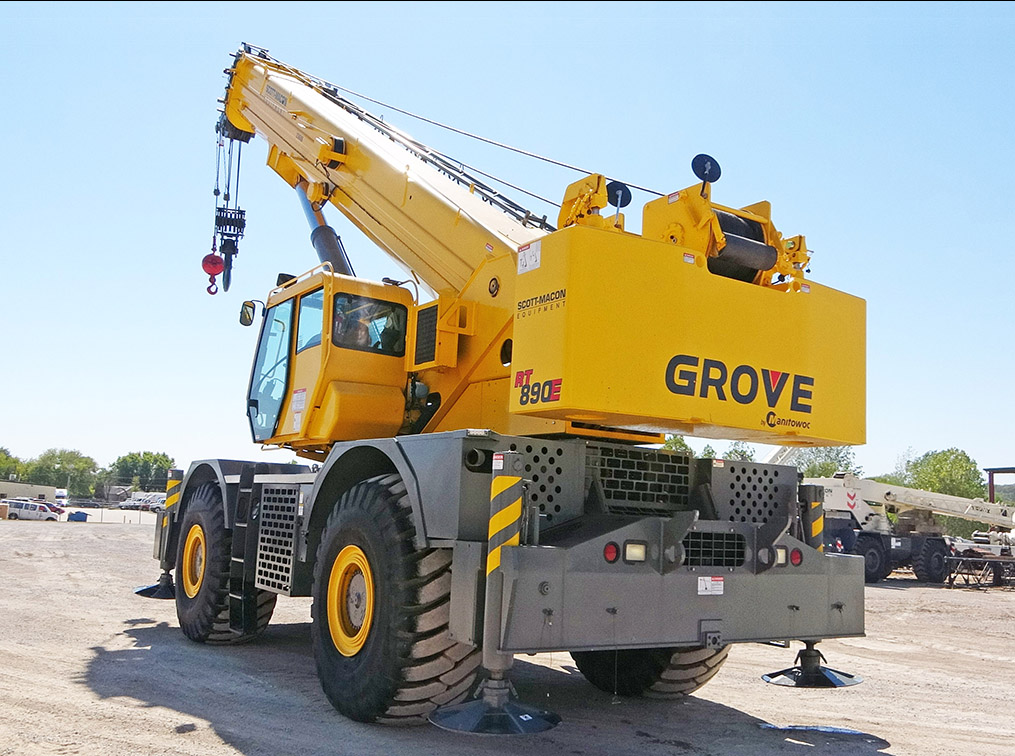

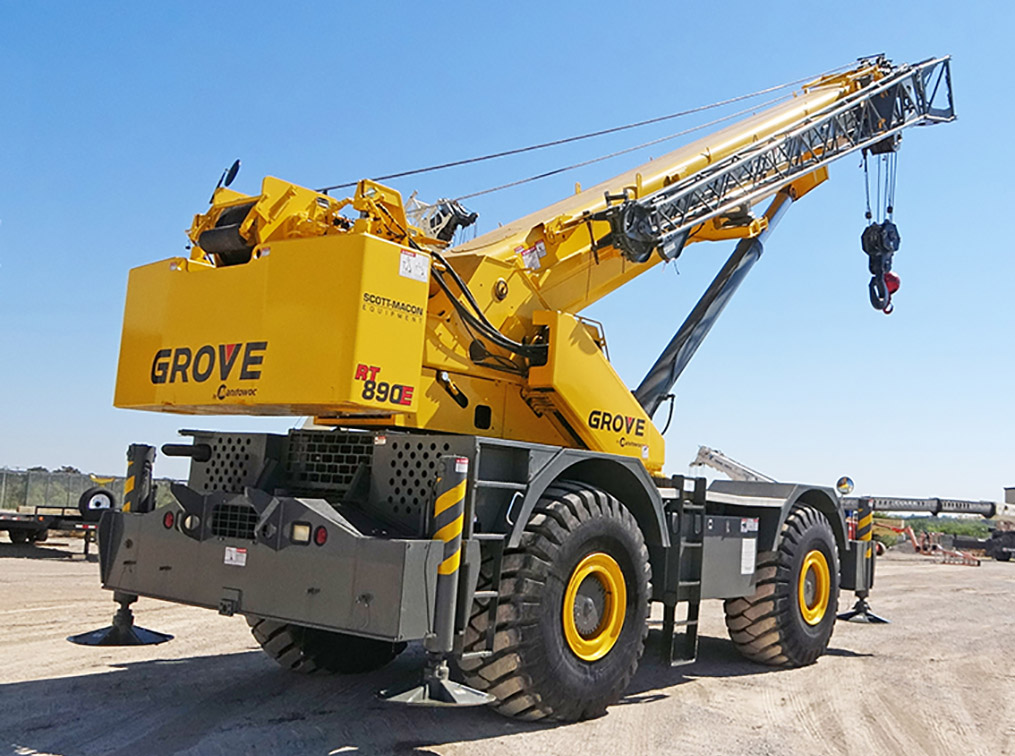

The RT890E is a 90 U.S. ton capacity rough terrain crane from Grove.

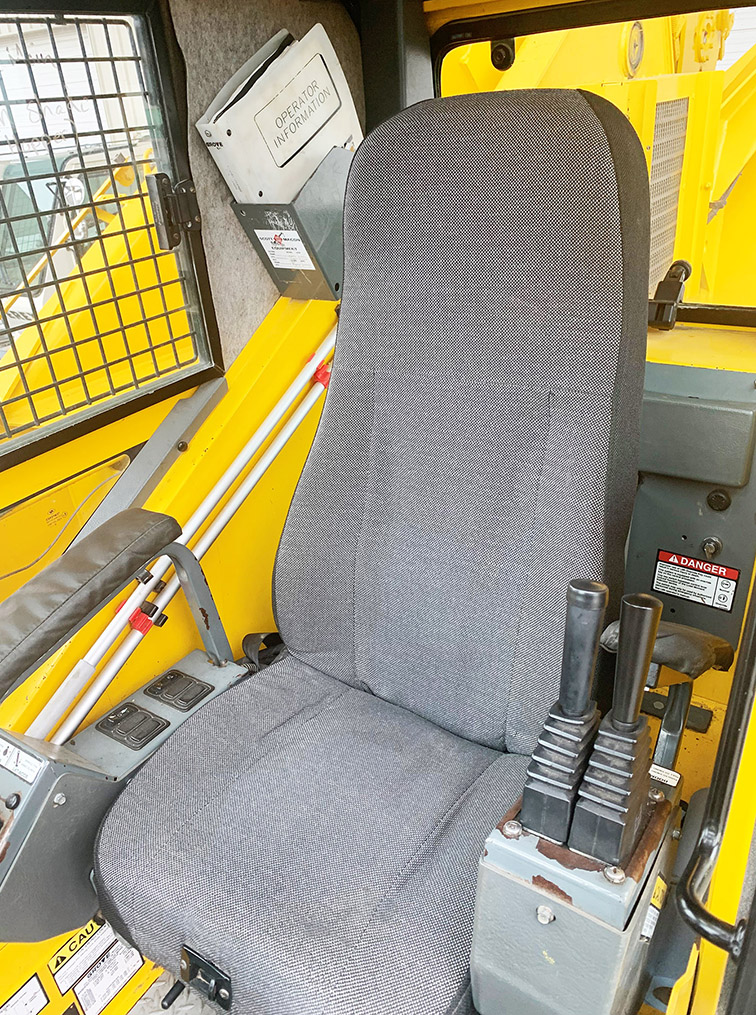

One of the key features of the RT890E is its MEGAFORM™ boom design. This boom design incorporates a “U-shaped cross-section that provides an exceptional strength-to-weight ratio”, which allows it to lift more in comparison to the traditional square and rectangular booms. Another feature is its removable counterweight. The counterweight and auxiliary hoist on the RT890E is hydraulically removed and installed. This allows for easier hauling. Its Full Vision cab tilts up 20˚, which provides the operator with more comfort when operating at longer boom and extension lengths.

For additional information or to receive an official Scott-Macon Equipment sales or rental quote, contact us today.

Jib and Boom

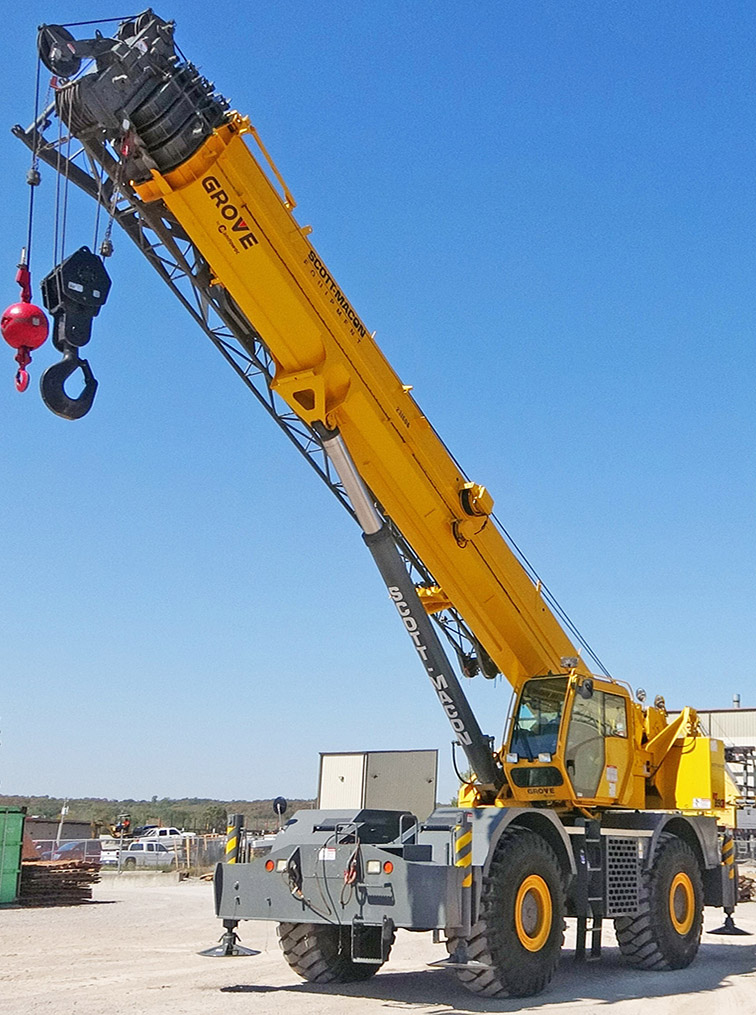

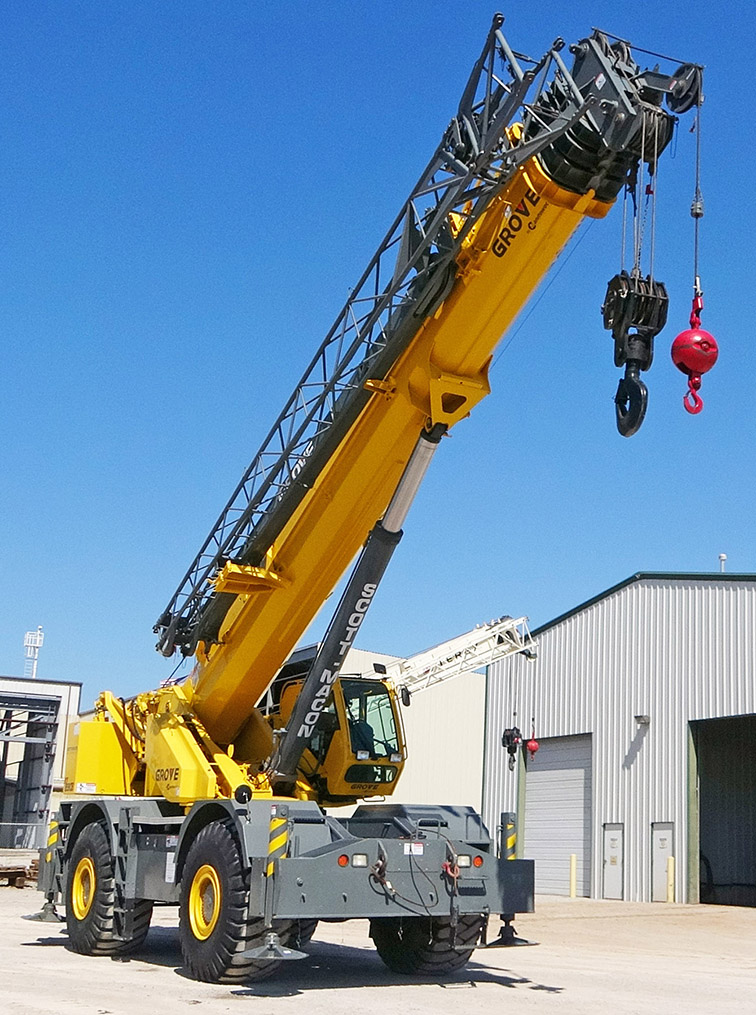

The Grove RT890E has a five-section, full power boom with a maximum length of 142′. Its offsettable bi-fold lattice, swingaway extension has a maximum length of 56′.
