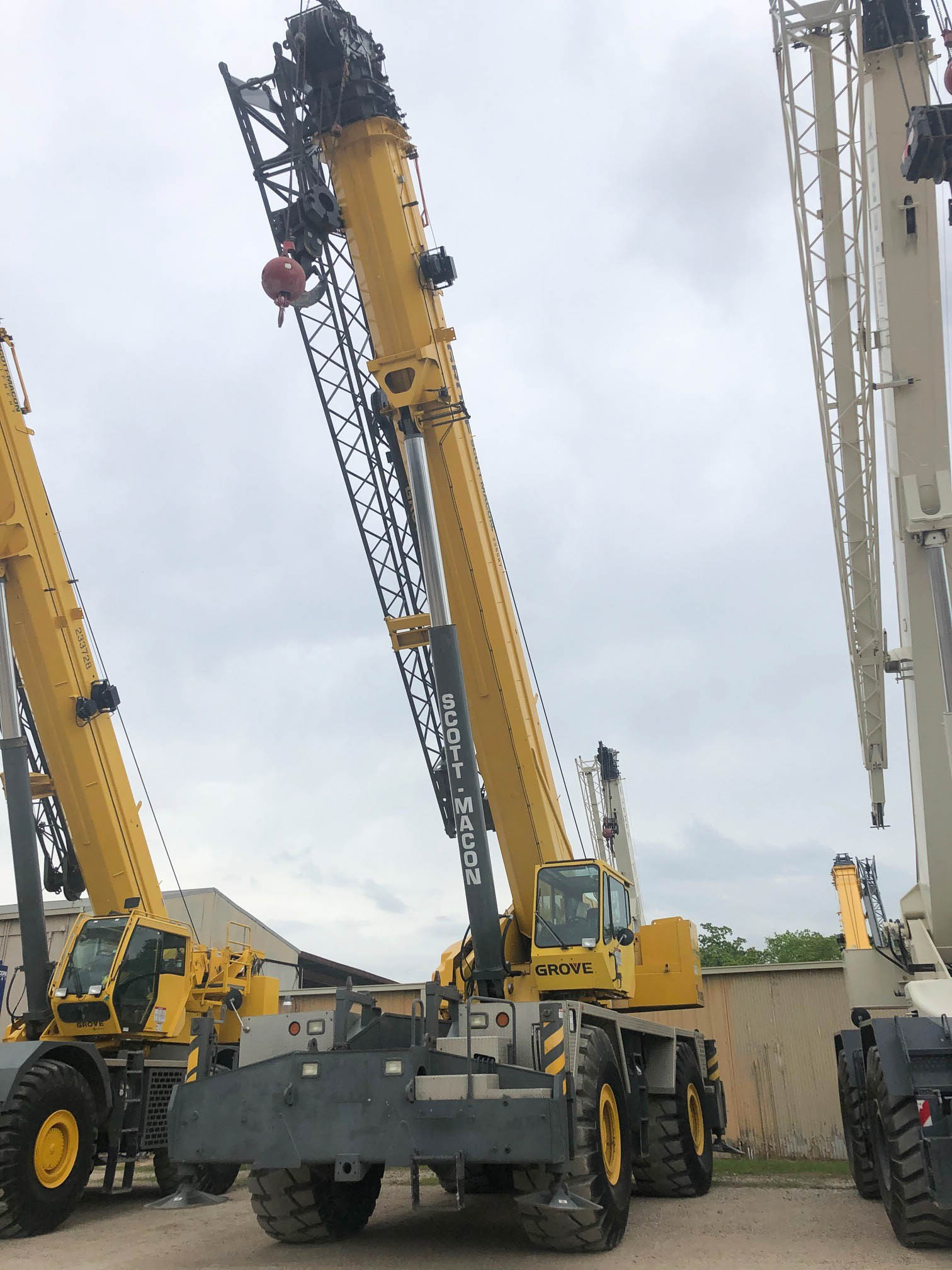

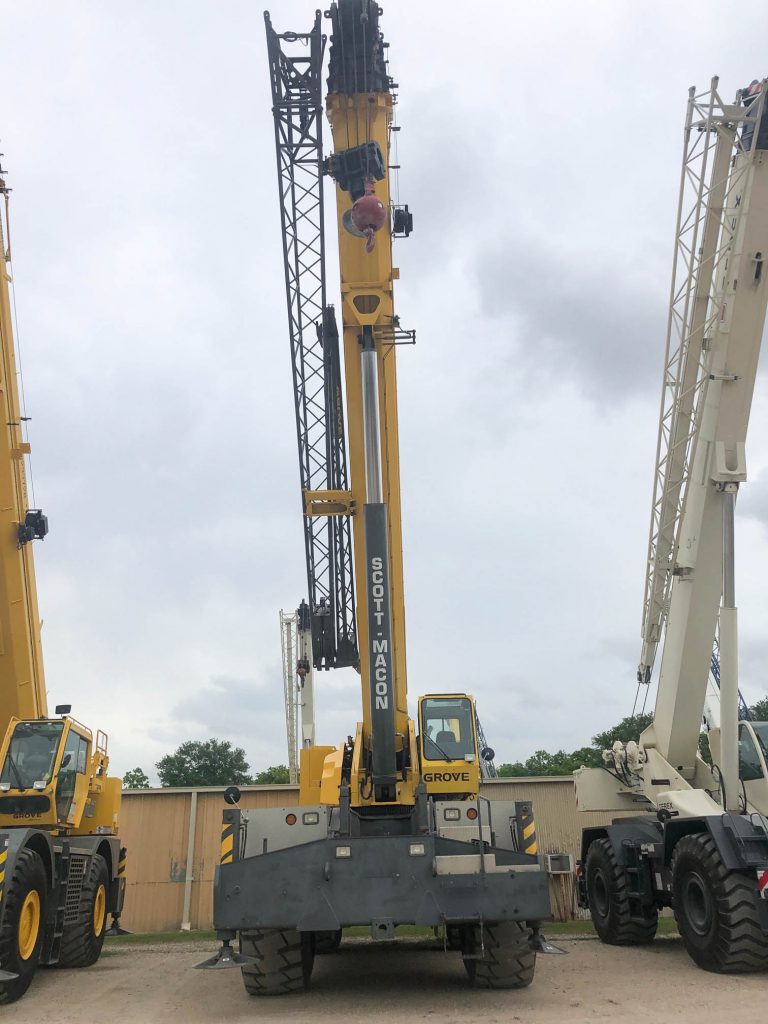

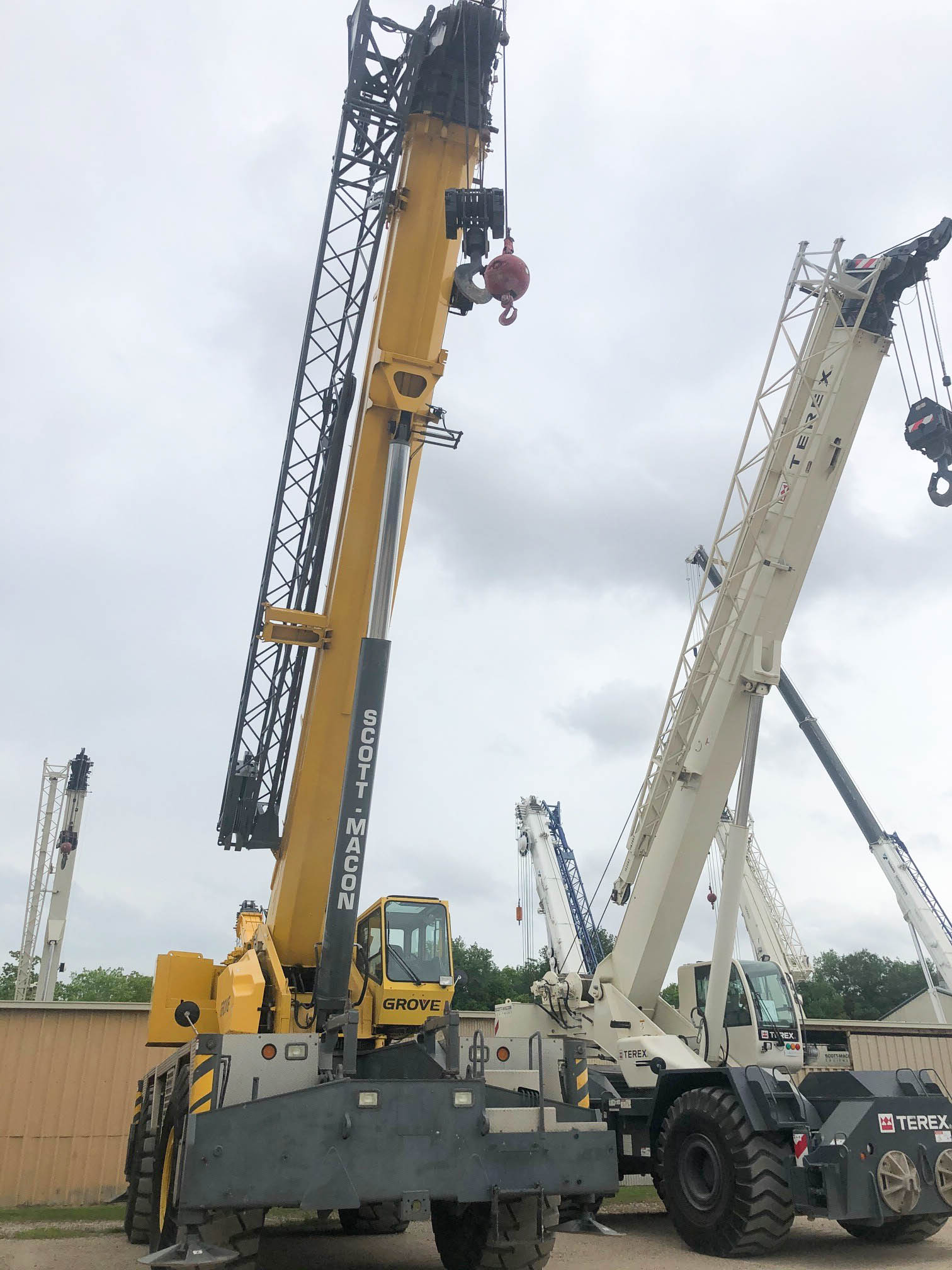

Grove RT9130E
| Product Type | Rough Terrain Cranes |
| Manufacturer | Grove |
| Location | Houston, Texas |
| Model | RT9130E |
| Year of Manufacture | 2006 |
| Serial Number | 225587 |
| Maximum Capacity | 130 tons |
| Tonnage Max Capacity Tons | 130 |
| Maximum Boom Length (ft) | 159' |
| Maximum Tip Height (ft) | 169' |
| Maximum Jib Length (ft) | 59' |
| Maximum Counterweight (lbs) | 40,000 lbs. |
| Engine | Cummins QSC8.3L diesel (Tier 3) |
| Tire or Track | Tire |
| Tire Size | 33.25x29 (38 ply) |
| Rated Capacity | 130 tons |
| Maximum Travel Speed (mph) | 15 mph |
| Drive Chain | 4x4 |
| Maximum Gradeability (%) | 73% |
| Crane Chart | https://www.manitowoc.com/grove/rough-terrain-cranes/rt9130e-2 |
The RT9130E is an efficient and powerful 130 U.S. ton capacity rough terrain crane from Grove.
One of the major features of the RT9130E is its MEGAFORM™ boom design. This boom design incorporates a “U-shaped cross-section that provides an exceptional strength-to-weight ratio”, which allows it to lift more in comparison to the traditional square and rectangular booms. The Grove RT9130E also comes with removable outrigger boxes for ease of transportation as well as a full lighting package with turn indicators and backup alarm. Additional features include the PAT load moment indicator with anti-two block system and control level lockouts.
If you are interested in additional information or would like to request an official Scott-Macon Equipment quote, contact us today!
Jib and Boom
The RT9130E has a five-section, full power boom with a maximum length of 159′. Its offsettable bi-fold swingaway extension has a maximum length of 59′. The Grove RT9130E also comes with two 26′ jib inserts.
Grove-RT9130E-Product-Guide.pdf
