Tadano GR-1200XL Rough Terrain Cranes
| Product Type | Rough Terrain Cranes |
| Manufacturer | Tadano |
| Condition | New |
| Model | GR-1200XL |
| Year of Manufacture | 2023 |
| Serial Number | FF0205 |
| Maximum Capacity | 120 tons |
| Maximum Boom Length (ft) | 183.7' |
| Maximum Jib Length (ft) | 58.1' |
| Maximum Counterweight (lbs) | 22,000 lbs |
| Engine | Cummins QSB6.7, EPA Tier 4 Final |
| Tire or Track | Tire |
| Tire Size | 29.5-25 34 PR |
| Drive Chain | 4x4 |
| Gross Vehicle Weight | 123,460 lbs |
| Maximum Lift Height (ft) | 241.4' |
| Crane Chart | https://tadanoamericas.com/uscan/en/lifting-equipment/rough-terrain-cranes/gr-1200xl/ |

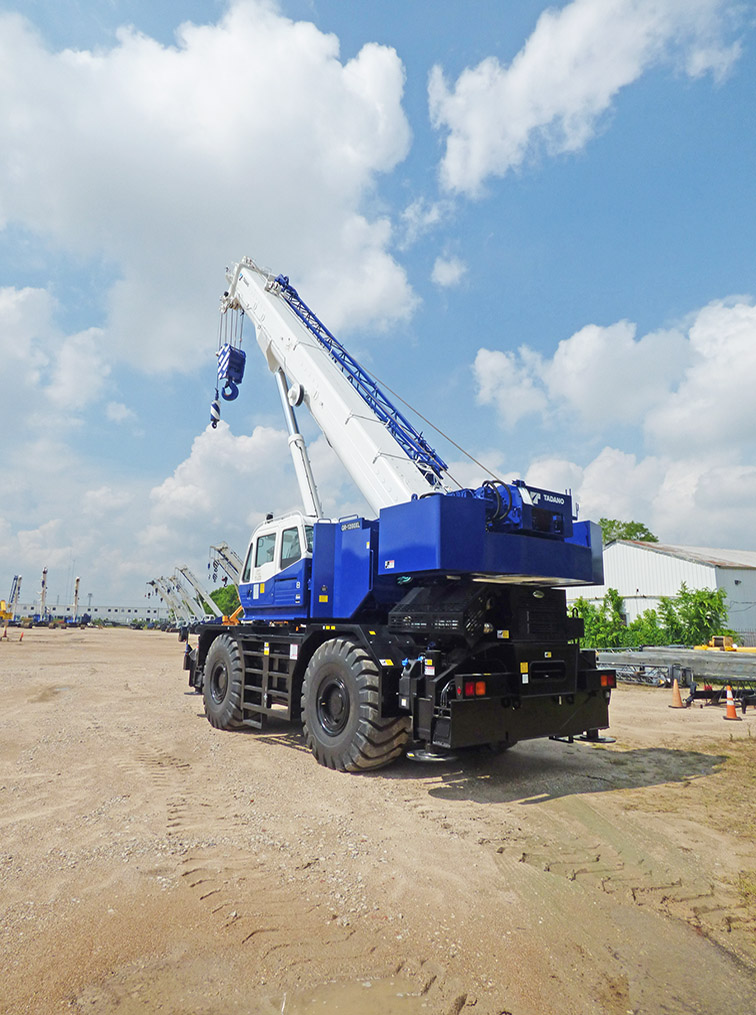

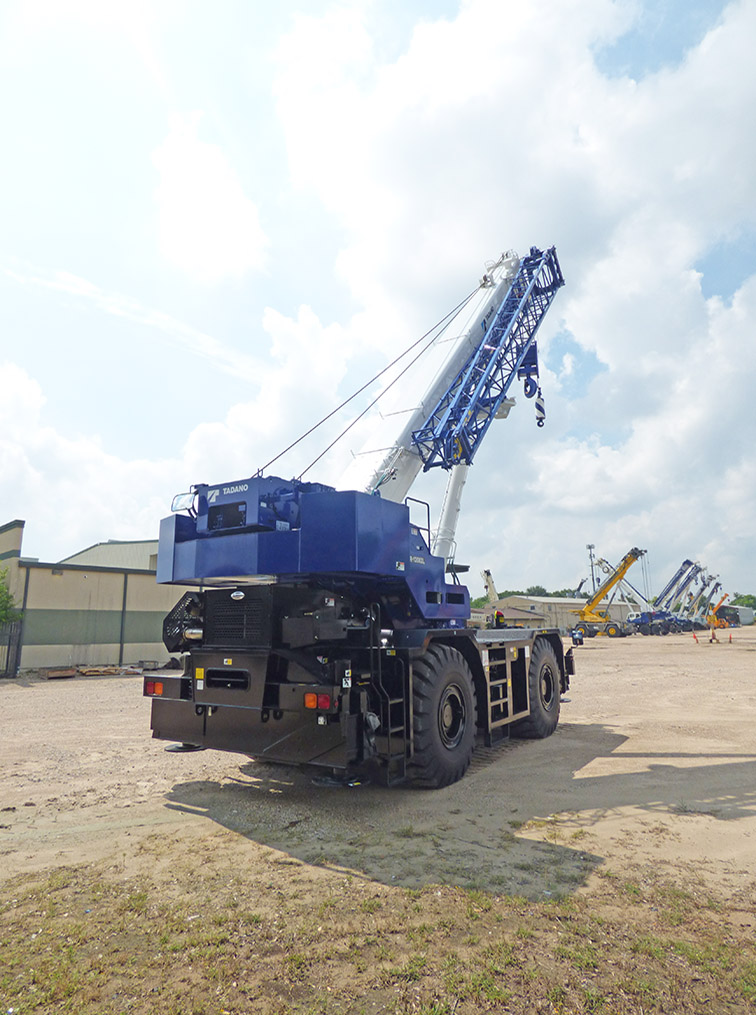

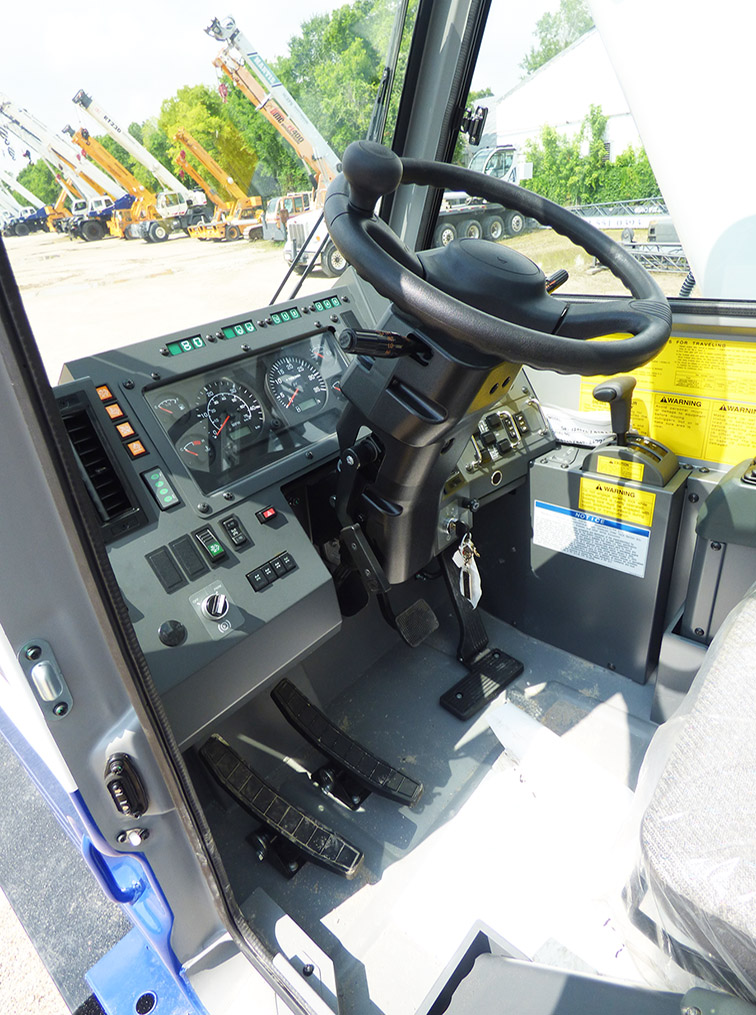

This 2023 120 ton Tadano GR-1200XL has a 183.7’ boom and 58.1’ jib. It comes with the Tadano “Smart Chart” to expand your working area and provide excellent performance in any outrigger setup. It also comes with HELLO-NET, Eco Mode, and self-removable counterweight. The Eco Mode system controls the maximum engine speed, reducing fuel consumption up to 40%. Another key feature and benefit that comes with the GR-1200XL is the Tadano electronic load moment indicator system or AML-C. The AML-C displays the boom angle, length, load radius, rated lifting capacity, and other key details that allow the operator to preset a custom working environment without having to change any configurations. Both audible and visual warnings are made in the AML-C. Other features included with this crane are a drum rotation indicator, Cummins QSB6.7 engine, and much more.
Jib and Boom

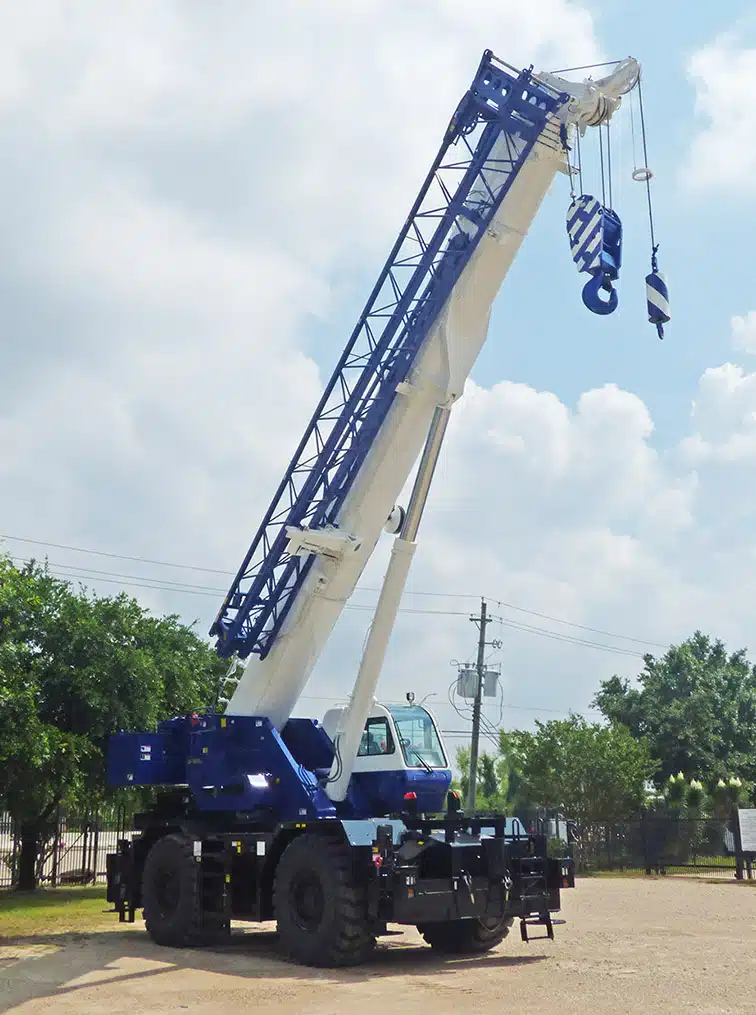

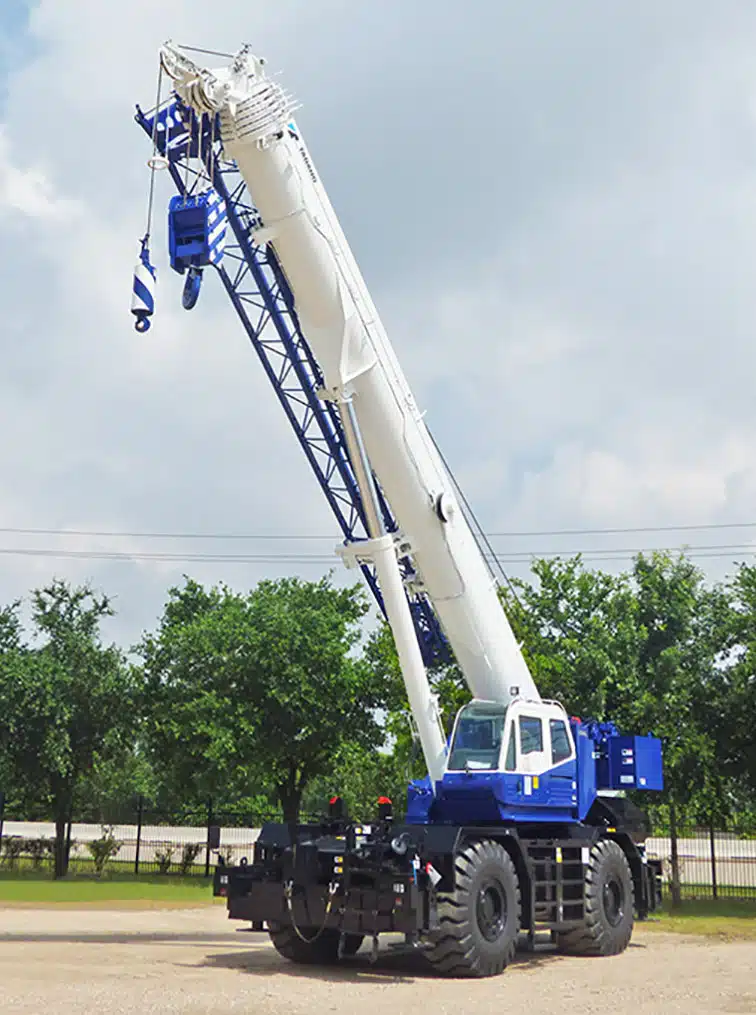

The GR-1200XL has a six-section extended boom with a maximum length of 183.7′. Its bi-fold lattice jib has a maximum length of 58.1′.
For additional information or to receive an official Scott-Macon Equipment sales quote, contact us today.
Tadano-GR-1200XL-Spec-Sheet.pdf
