Tadano GR-1200XL
| Product Type | Rough Terrain Cranes |
| Manufacturer | Tadano |
| Model | GR-1200XL |
| Year of Manufacture | 2020 |
| Maximum Capacity | 120 tons |
| Maximum Boom Length (ft) | 183.7' |
| Maximum Jib Length (ft) | 58.1' |
| Maximum Counterweight (lbs) | 22,000 lbs |
| Engine | Cummins QSB6.7, EPA Tier 4 Final |
| Tire or Track | Tire |
| Tire Size | 29.5-25 34 PR |
| Drive Chain | 4x4 |
| Gross Vehicle Weight | 123,460 lbs |
| Maximum Lift Height (ft) | 241.4' |

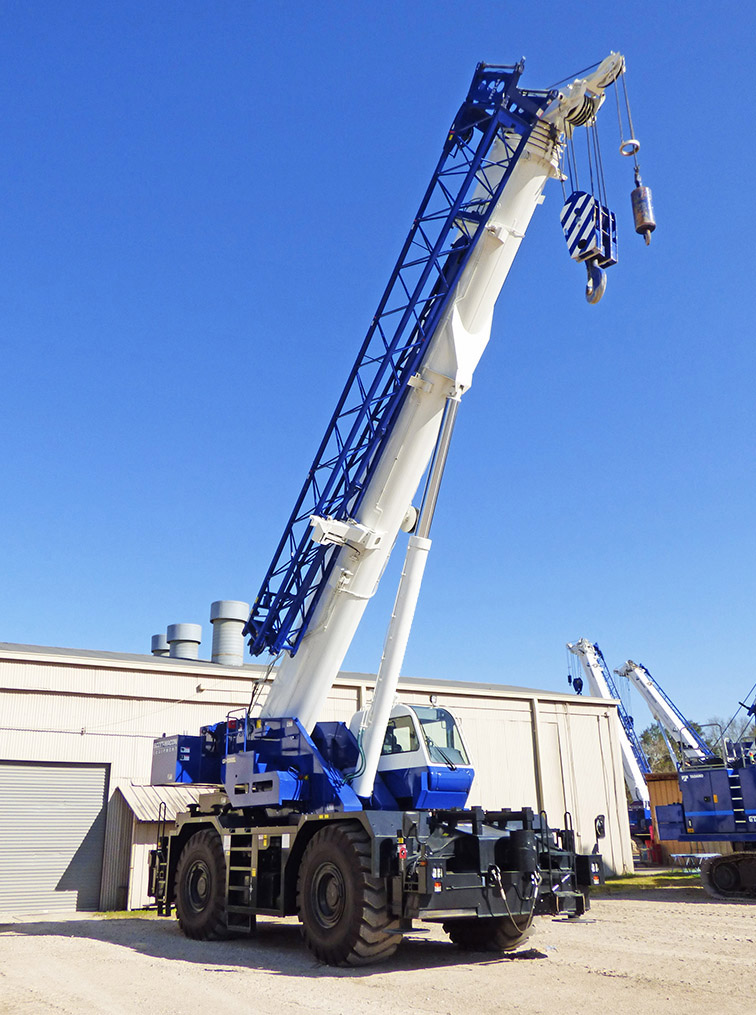

The Tadano GR-1200XL rough terrain crane has a 120 ton lift capacity. One of the benefits of having a Tadano rough terrain is its HELLO-NET capability. HELLO-NET is Tadano’s telematics system that supports crane management by giving the operator details on operational status, maintenance and position. Another key feature and benefit that comes with the GR-1200XL is the Tadano electronic load moment indicator system or AML-C. The AML-C, which is innovative in design, displays the boom angle, length, load radius, rated lifting capacity and other key details that allow the operator to preset a custom working environment without having to change any configurations. Both audible and visual warnings are made in the AML-C. Other features included with this crane are an Eco Mode system, self removable counterweight, drum rotation indicator, Cummins QSB6.7 engine and much more.
Jib and Boom
The GR-1200XL has a six-section extended boom with a maximum length of 183.7′. Its bi-fold lattice jib has a maximum length of 58.1′.
For additional information or to receive an official Scott-Macon Equipment sales quote, contact us today.
