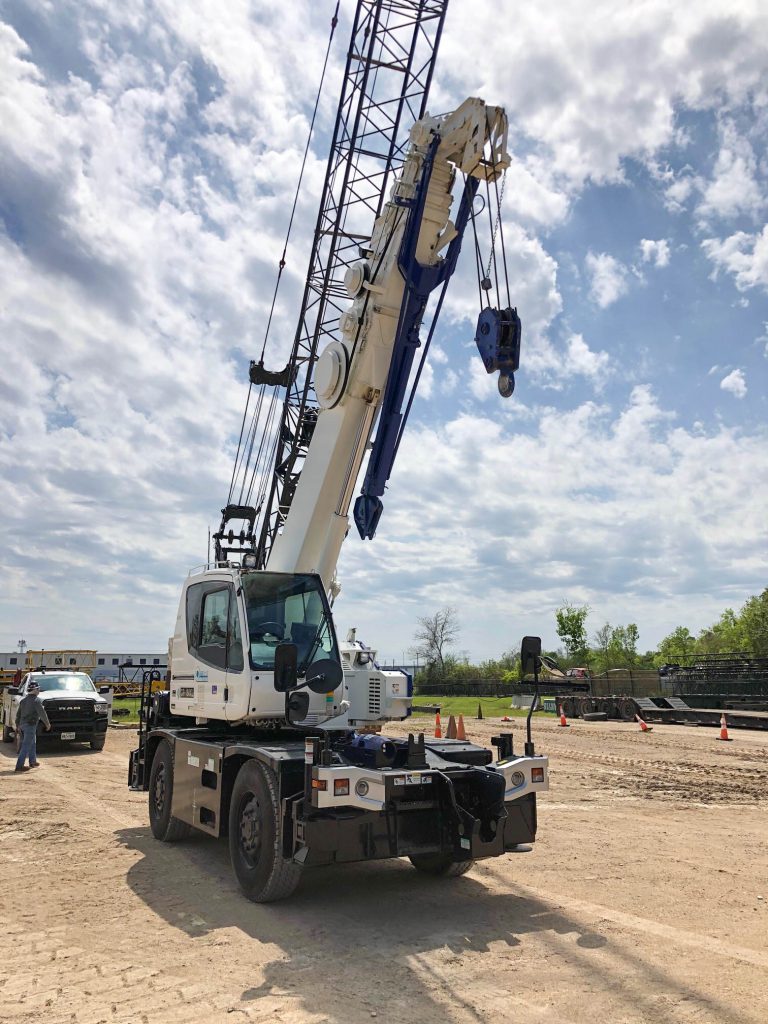

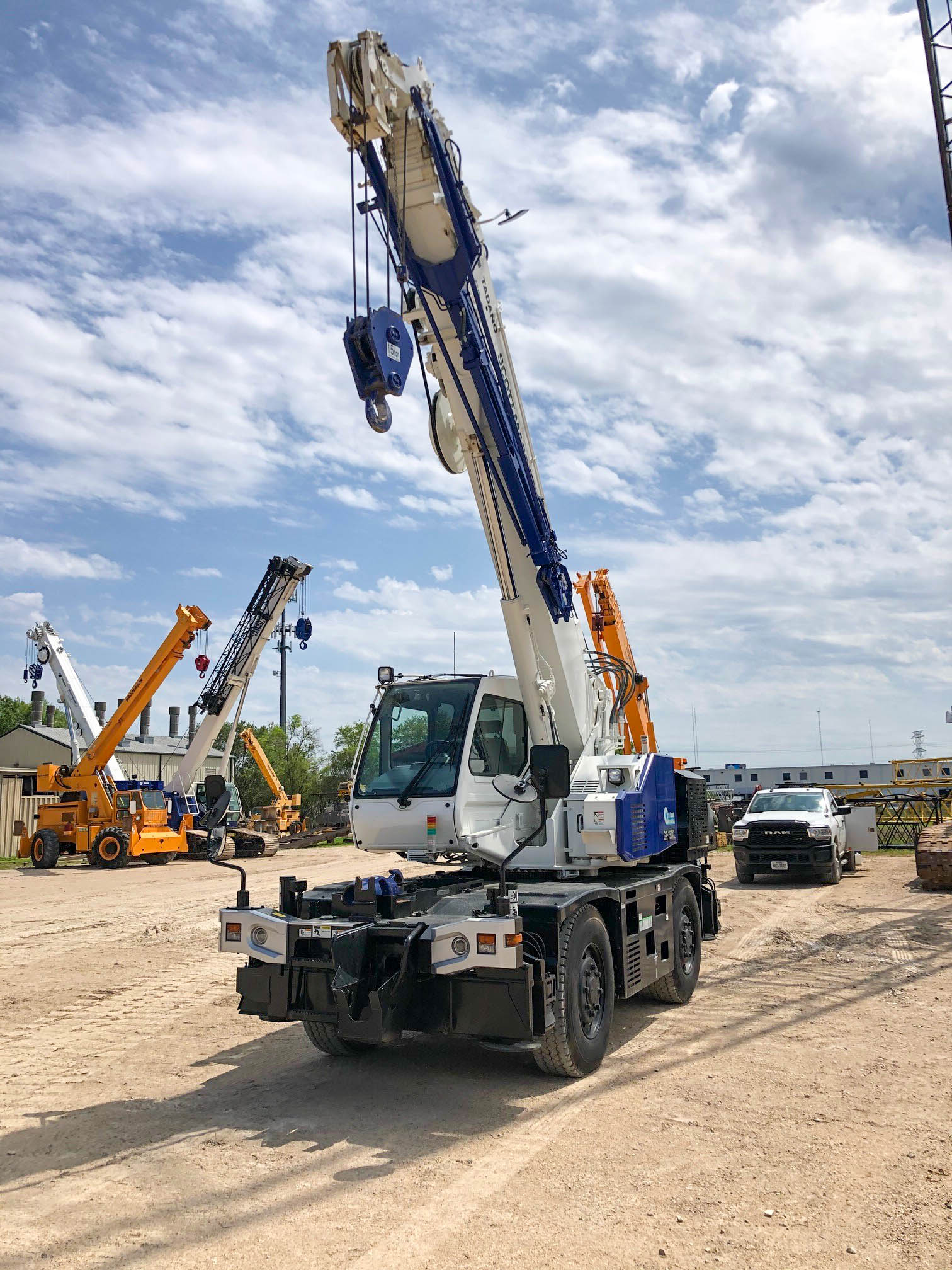

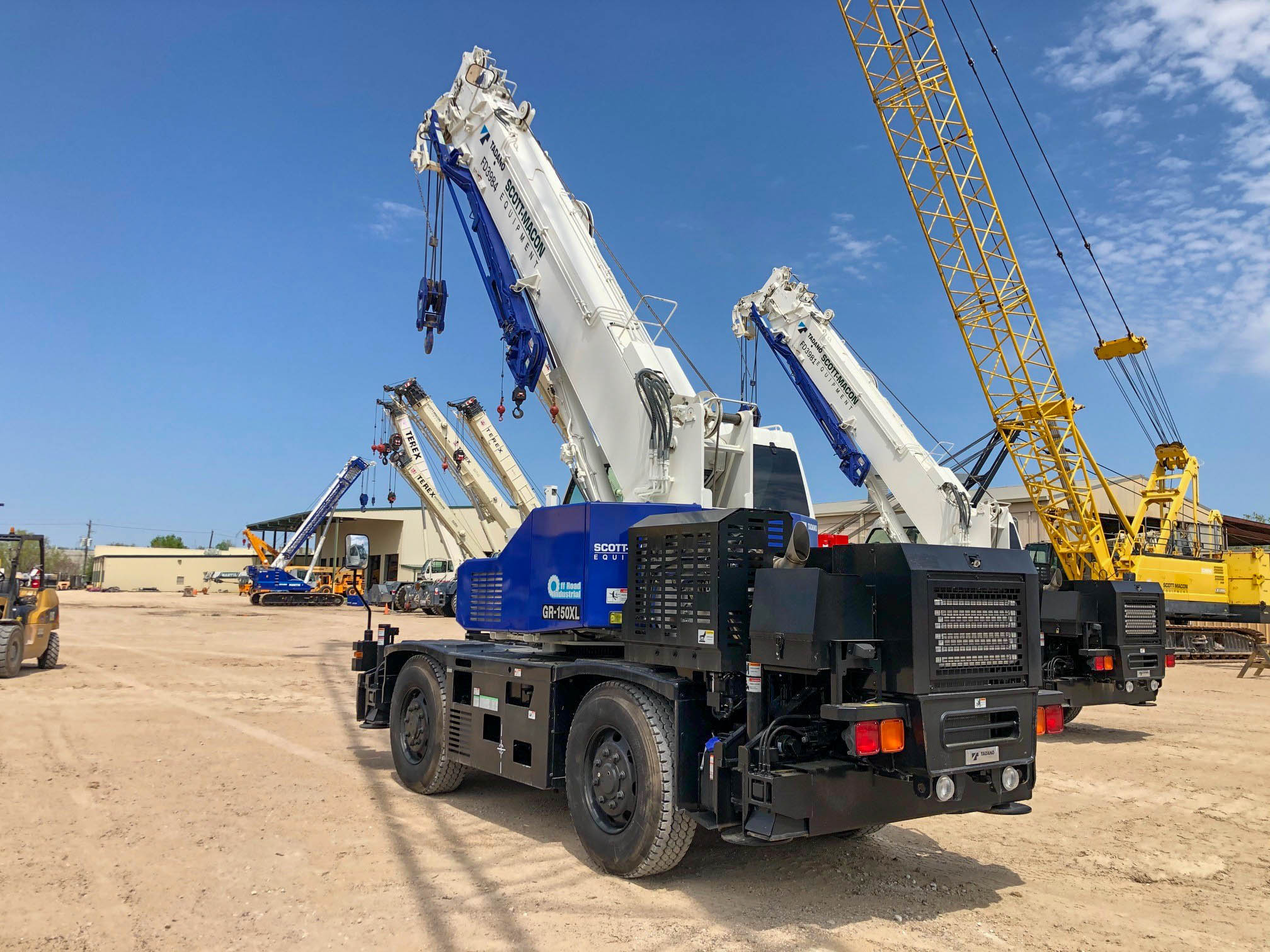

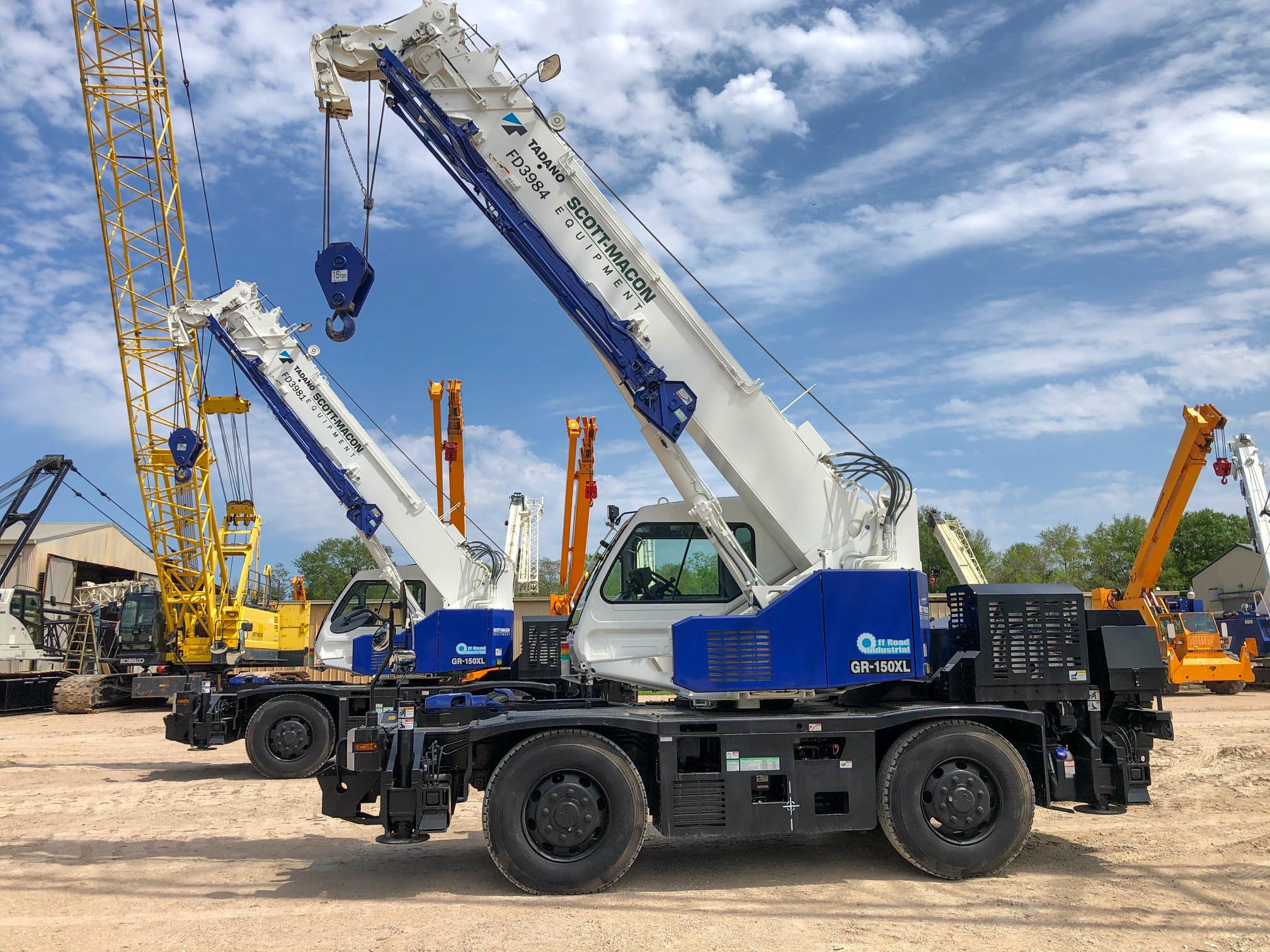

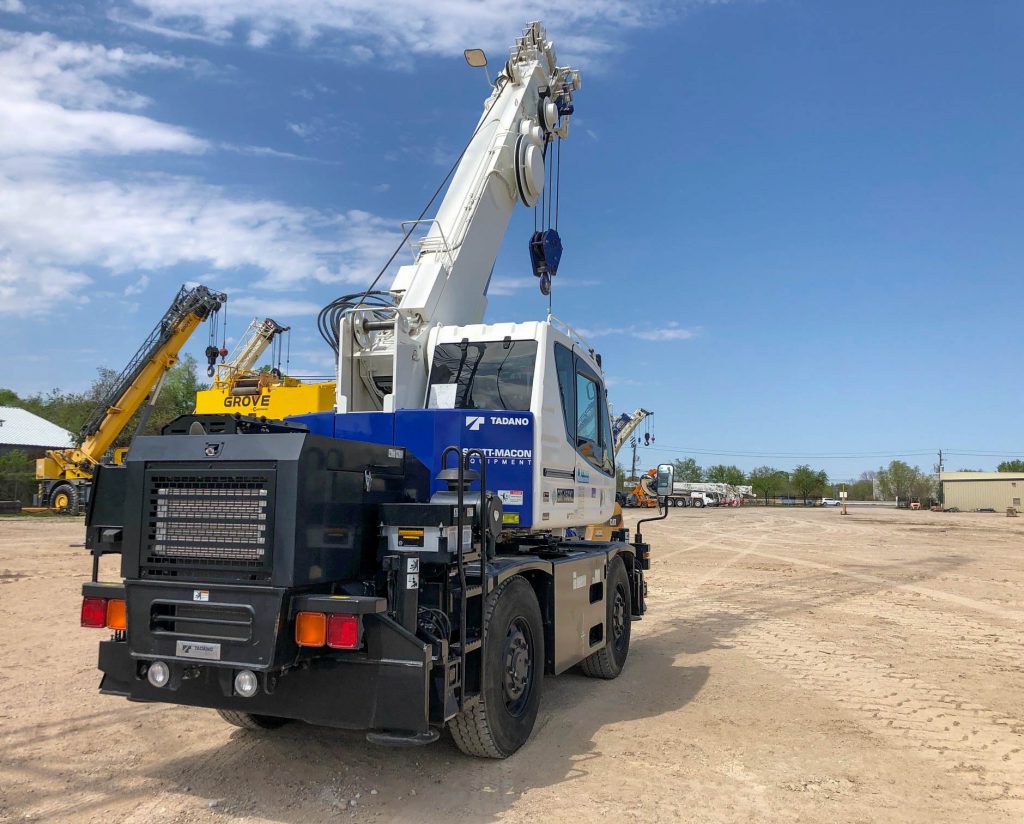

Tadano GR-150XL-3 Rough Terrain Cranes
| Product Type | Rough Terrain Cranes |
| Manufacturer | Tadano |
| Condition | Rent |
| Model | GR-150XL-3 |
| Year of Manufacture | 2019 |
| Serial Number | FD3984 |
| Maximum Capacity | 15 tons |
| Maximum Boom Length (ft) | 79' |
| Maximum Tip Height (ft) | 98' |
| Maximum Jib Length (ft) | 18' |
| Overall Length (ft) | 24' 9-5/8" |
| Engine | HINO JO5EVA-TDFC [Tier4] |
| Tire or Track | Tire |
| Tire Size | 275/80R22.5 |
| Maximum Travel Speed (mph) | 30.4 mph |
| Maximum Gradeability (%) | 51 % |
| Crane Chart | https://tadanoamerica.com/product/gr-150xl-3/ |
With a 15 U.S. ton lift capacity, the GR-150XL-3 is the most compact crane from the Tadano rough terrain family.
One of the key upgrades that is featured on the GR-150XL-3 is its upgraded lifting capacity, which allows more lifting operations to be done with a single line resulting for an improved hoisting performance. The tail swing has also been reduced to approximately 4.11′, allowing for more flexible maneuverability in narrow spaces and a more overall efficient experience. Also more environmentally-friendly, the GR-150XL-3 has Positive Control System, which is part of the Eco function. Tadano’s Positive Control System allows the crane to control the amount of hydraulic pump emission during operation. This ultimately minimizes both its carbon footprint and fuel consumption.
If you are interested in additional information or would like to request an official Scott-Macon Equipment quote, contact us today!
Jib and Boom
The GR-150XL-3 has a six-section full power, synchronized boom with a maximum length of 78.7′. It has a maximum jib length of 18′.
Tadano-GR-150XL-3-Spec-Sheet.pdf
