Tadano GR-550XL

NewRough Terrain Cranes

Product Type Rough Terrain Cranes
Manufacturer Tadano
Location Houston, Texas
Model GR-550XL
Year of Manufacture 2023
Serial Number 542218
Maximum Capacity 55 tons
Maximum Boom Length (ft) 113.9'
Maximum Tip Height (ft) 165'
Maximum Jib Length (ft) 50'
Overall Length (ft) 43' 10-3/4"
Carrier Length (ft) 27' 6-3/8"
Engine Cummins QSB6.7
Tire or Track Tire
Rated Capacity 55 tons
Maximum Travel Speed (mph) 31 mph
Maximum Gradeability (%) 69%

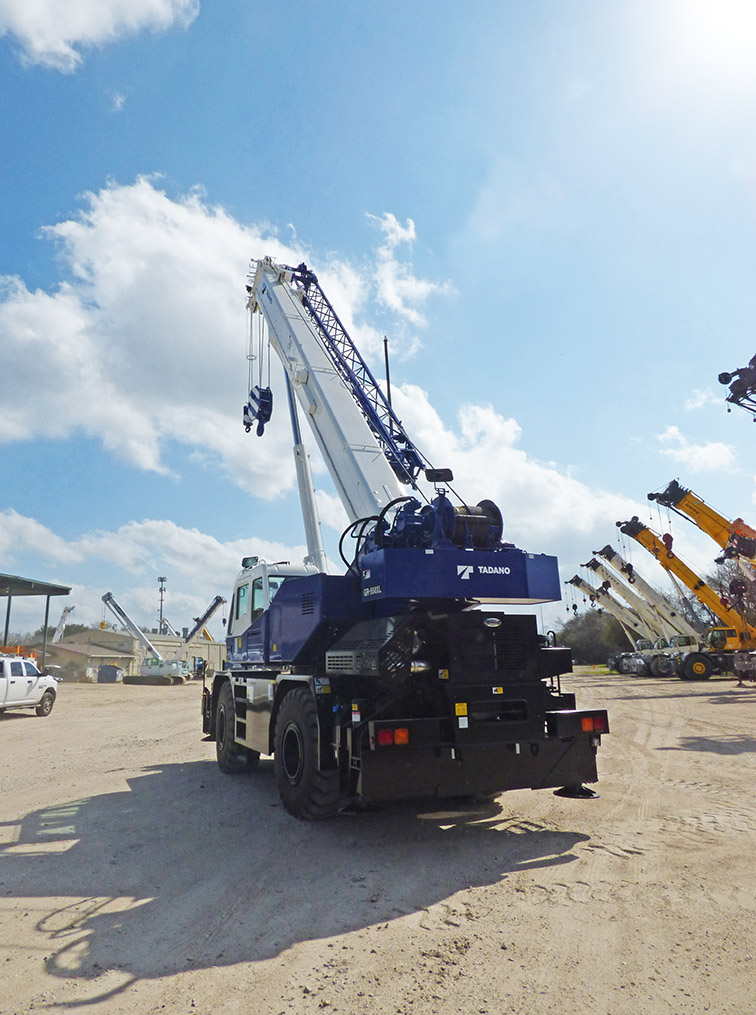

This new 2023 Tadano GR-550XL has a 55 ton capacity with a 113.9′ boom and a 50′ jib. With its four-position asymmetrical outrigger system and advanced monitoring, the GR-550XL offers numerous configuration options and efficient operation. It features the HELLO-NET telematics system that supports crane management. The AML-C system detects the extension width of outriggers at all four corners to offer maximum area work value. Also included is the Eco Mode system, which controls maximum engine speed to reduce emissions, fuel consumption, and noise while providing solid crane operation.

Jib and Boom

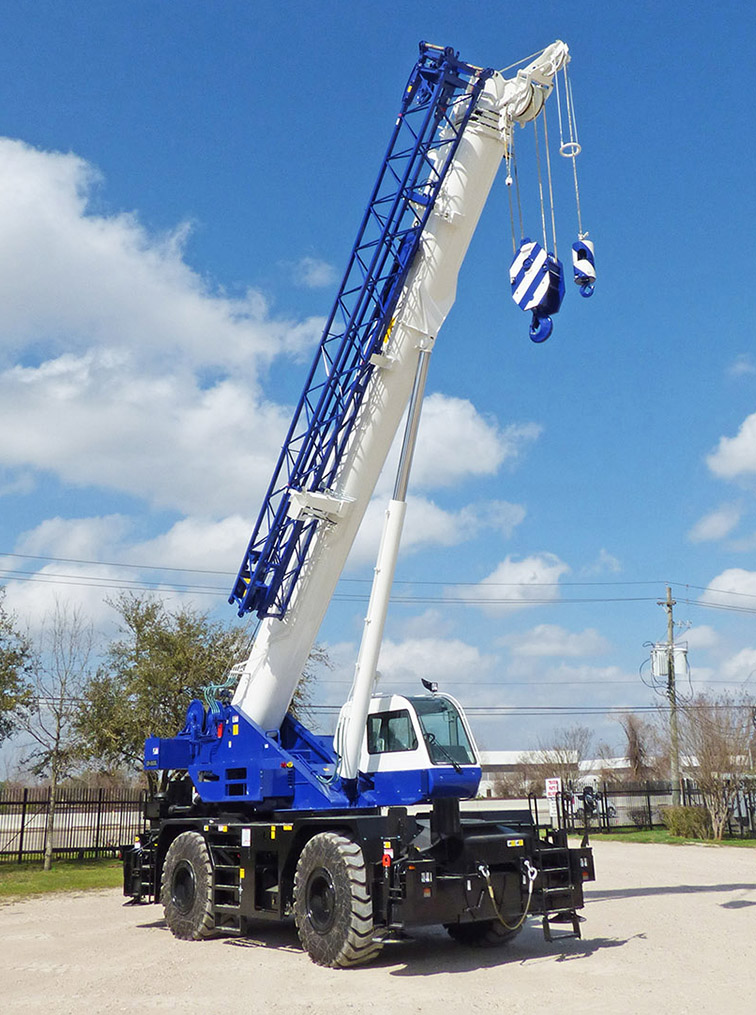

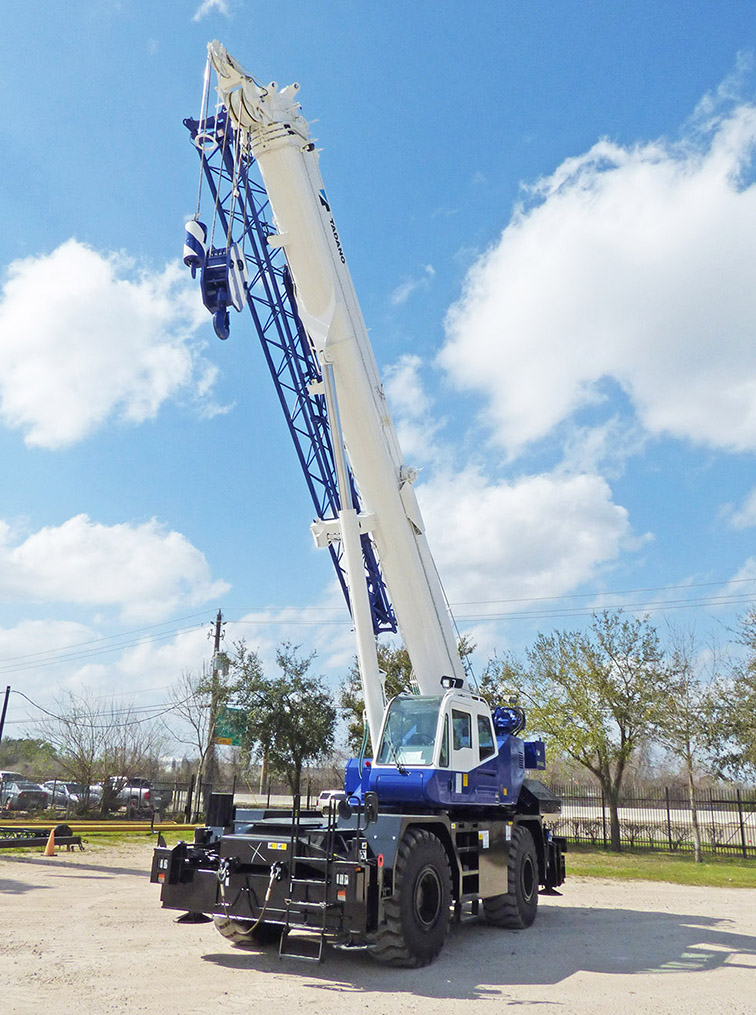

The Tadano GR-550XL features a 113.9′ boom length and a 50′ jib length.

For additional information or to receive an official Scott-Macon Equipment sales quote, contact us today.
