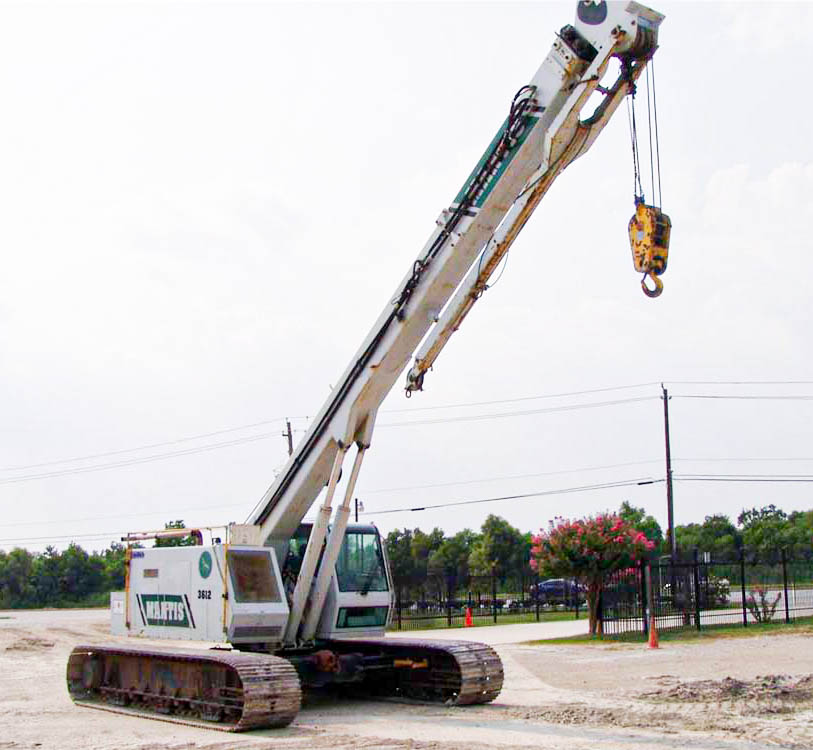

Tadano Mantis 3612 Hydraulic Crawler Cranes

With great stability, the Mantis 3612 is the most performance proven full-size telescopic boom crawler crane in the industry.

The Mantis 3612, although now an official Tadano legacy crane, is the smallest model in the Mantis fleet and possesses an 18-ton pick-and-carry capacity.

Jib and Boom
The basic model of this Mantis has a 71’4″ three-section full power boom. It also has a 16′ to 25′ telescopic A-frame jib, which allows for a tip height of about 100′.

Product Type Hydraulic Crawler Cranes
Manufacturer Tadano Mantis
Condition Rent
Model 3612
Year of Manufacture 2006
Serial Number 36-279
Maximum Capacity 18
Maximum Boom Length (ft) 71'
Maximum Tip Height (ft) 76'
Maximum Jib Length (ft) 25'
Overall Length (ft) 39.6
Engine Cummins QSB174 diesel engine
Number of Hoists 1
Maximum Travel Speed (mph) 3 mph
Maximum Gradeability (%) 70%
Overall Width Tracks Extended 13.3
Overall Width Tracks Retracted 10
Counterweight 10000
Gross Vehicle Weight 52500
Crane Chart http://www.mlcranes.com/wp-content/uploads/2015/03/3612_brochure-.pdf
