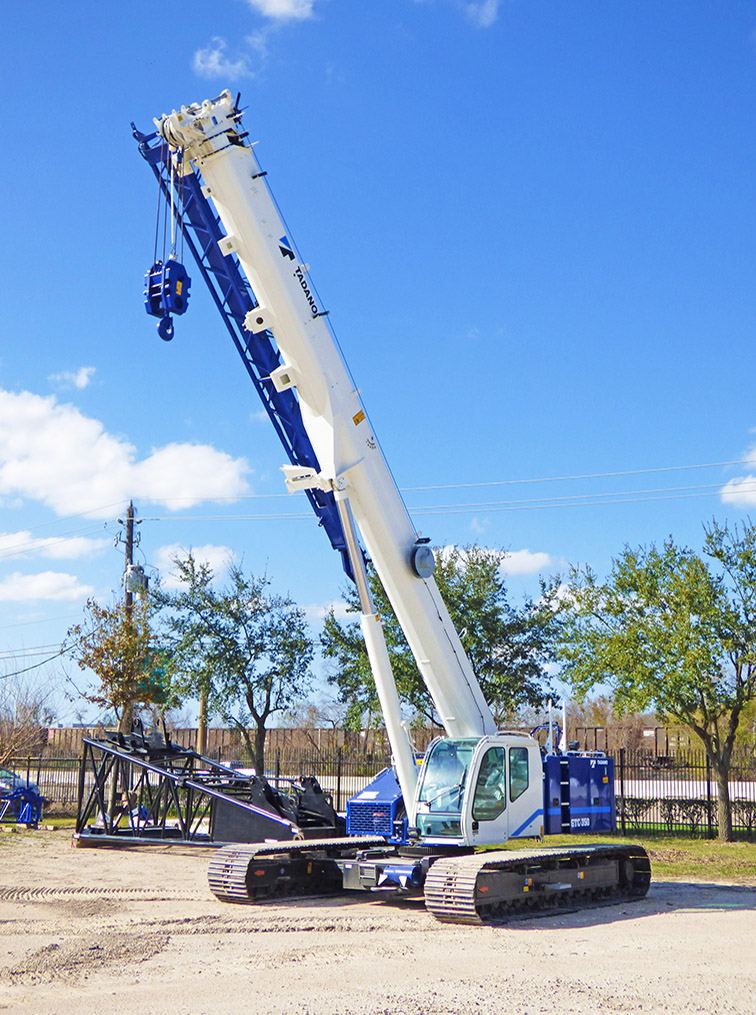

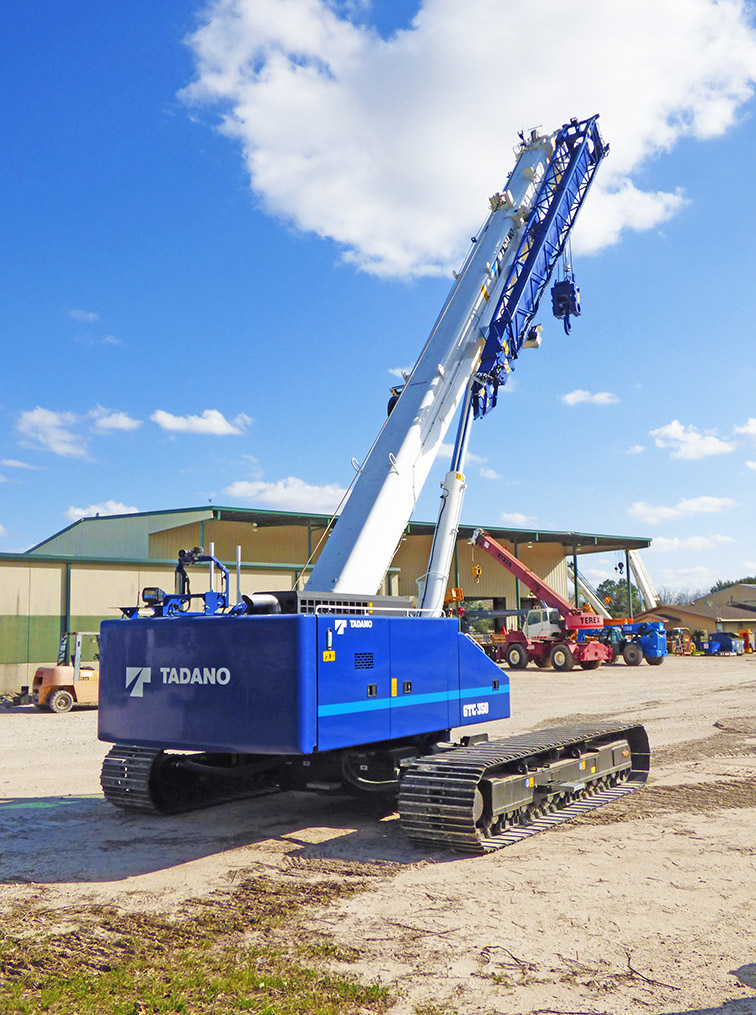

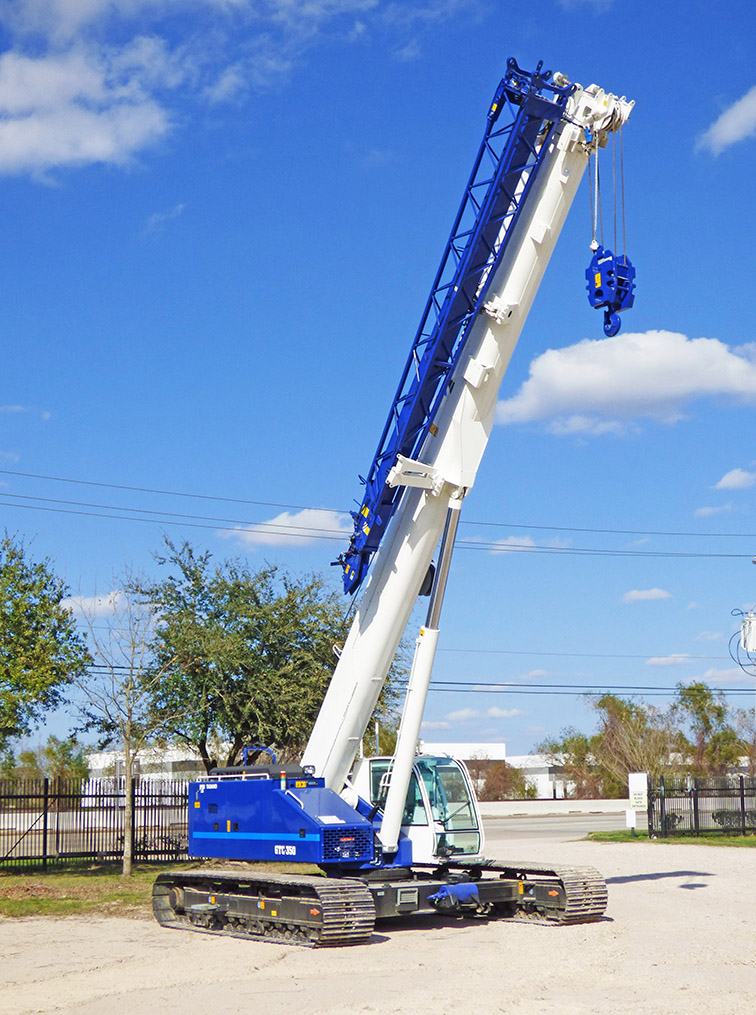

Tadano Mantis GTC-350
| Category | Crawler Crane |
| Product Type | Hydraulic Crawler Cranes |
| Manufacturer | Tadano Mantis |
| Location | Houston, Texas |
| Model | GTC-350 |
| Year of Manufacture | 2022 |
| Maximum Capacity | 35 tons |
| Maximum Boom Length (ft) | 89'3" |
| Maximum Counterweight (lbs) | 12,500 lbs. |
| Overall Length (ft) | 43'4" |
| Tire or Track | Track |
| Maximum Travel Speed (mph) | 2.1 mph |
| Overall Width Tracks Extended | 15'10" |
| Overall Width Tracks Retracted | 9'10" |
| Gross Vehicle Weight | 71,500 lbs. |
The Tadano Mantis GTC-350 is a 35-ton capacity hydraulic tele-boom crawler crane. With a 71,500 lb. gross vehicle mass and a fixed counterweight of 12,500 lbs., the GTC-350 comes equipped with the Tadano AML-C Rated Capacity Limiter and Anti-Two Block system. Its load moment indicator uses an LCD screen to provide a continuous display of working boom length, boom angle, working load radius, tip height, swing position and more. Its anti-two block weight allows for quick reeving of the hook block. Tadano’s HELLO-NET system provides useful crane data, while its jib interlock system ensures safer mounting.
Jib and Boom
The GTC-350 has a three-section full power telescoping boom with a maximum length of 89.3 feet. An extendable jib (23’6″ / 42′) is included with the crane value package.
For additional information or to receive an official Scott-Macon Equipment sales or rental quote, contact us today.
Tadano-Mantis-GTC-350-Brochure.pdf
