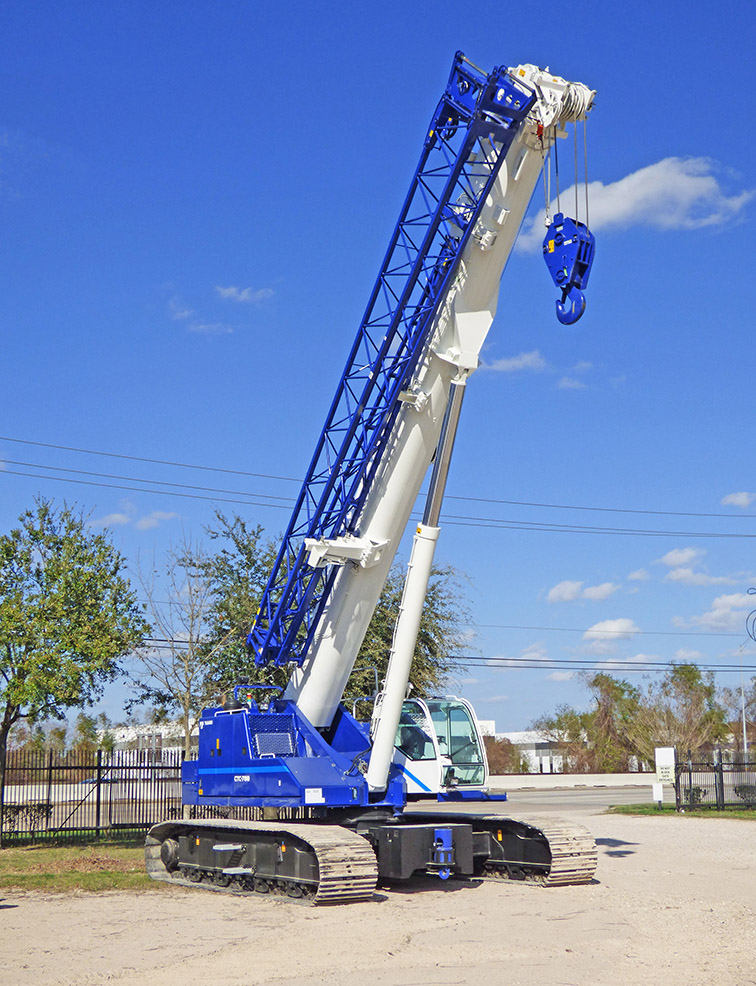

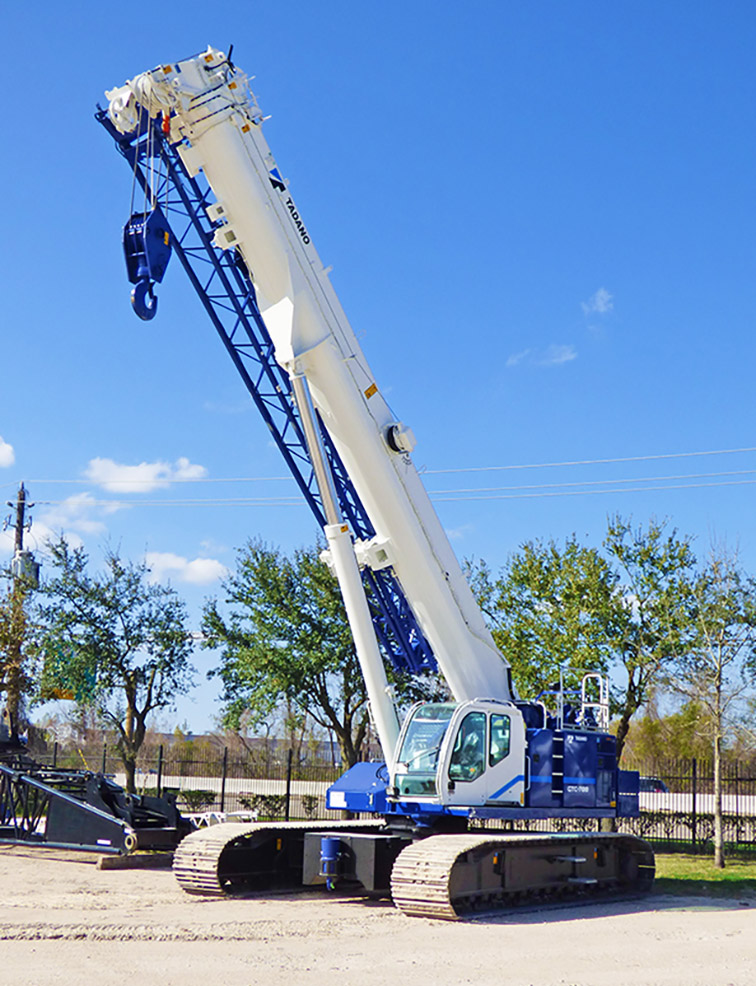

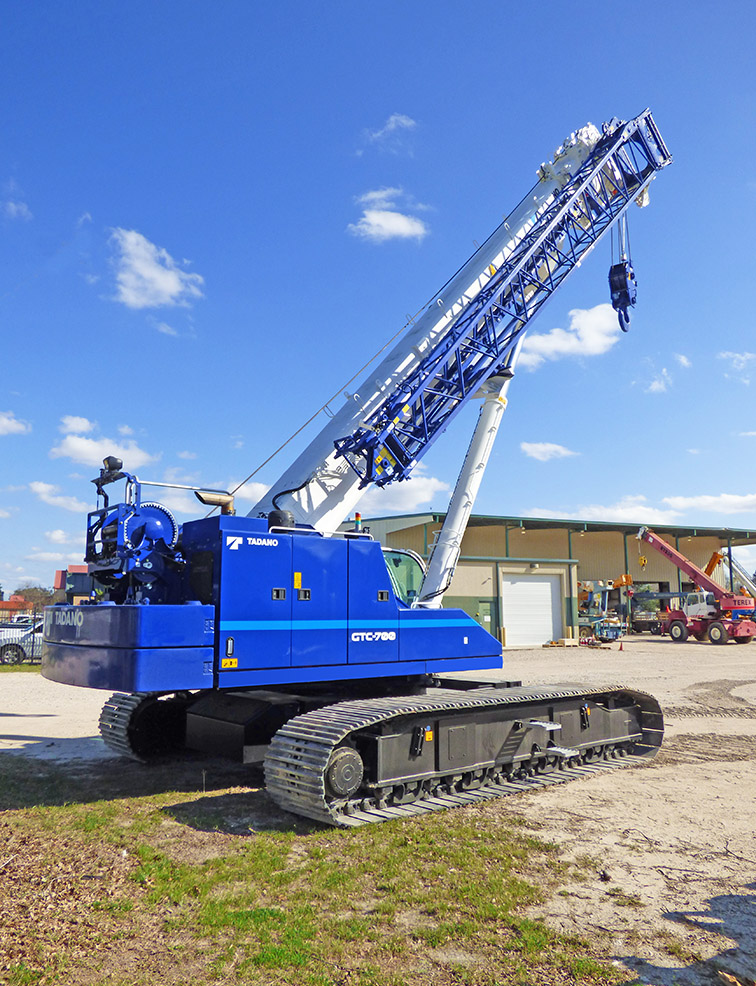

Tadano Mantis GTC-700 Hydraulic Crawler Cranes
| Category | Crawler Crane |
| Product Type | Hydraulic Crawler Cranes |
| Manufacturer | Tadano Mantis |
| Condition | New |
| Model | GTC-700 |
| Year of Manufacture | 2023 |
| Serial Number | 600-153 |
| Maximum Capacity | 70 tons |
| Maximum Boom Length (ft) | 118.1' |
| Maximum Tip Height (ft) | 181' |
| Maximum Jib Length (ft) | 58.1' |
| Engine | Cummins QSB6.7 |
| Tire or Track | Track |
| Maximum Travel Speed (mph) | 2.3 mph |
| Height | 12.9' |
| Overall Width Tracks Extended | 17.9 |
| Overall Width Tracks Retracted | 10.9' |
| Counterweight | 30,000 lbs. |
| Gross Vehicle Weight | 140,086 lbs. |
The 2023 Tadano Mantis GTC-700 is a 70 ton capacity telescopic boom crawler crane. This robust crane comes equipped with the Tadano HELLO-NET telematics system and AML-C LMI system, among other features. The load moment indicator’s LCD screen continuously displays working boom length, boom angle, working load radius, tip height, and other key details. With a 140,086 lb. gross vehicle mass and a Cummins QSB6.7 diesel engine, the GTC-700 is a solid addition to your job site.
Jib and Boom
The Tadano Mantis GTC-700 has a four-section, full power telescopic boom with a maximum length of 118.1 feet and a 58.1 ft. bi-fold jib.
For additional information or to receive an official Scott-Macon Equipment sales quote, contact us today.
