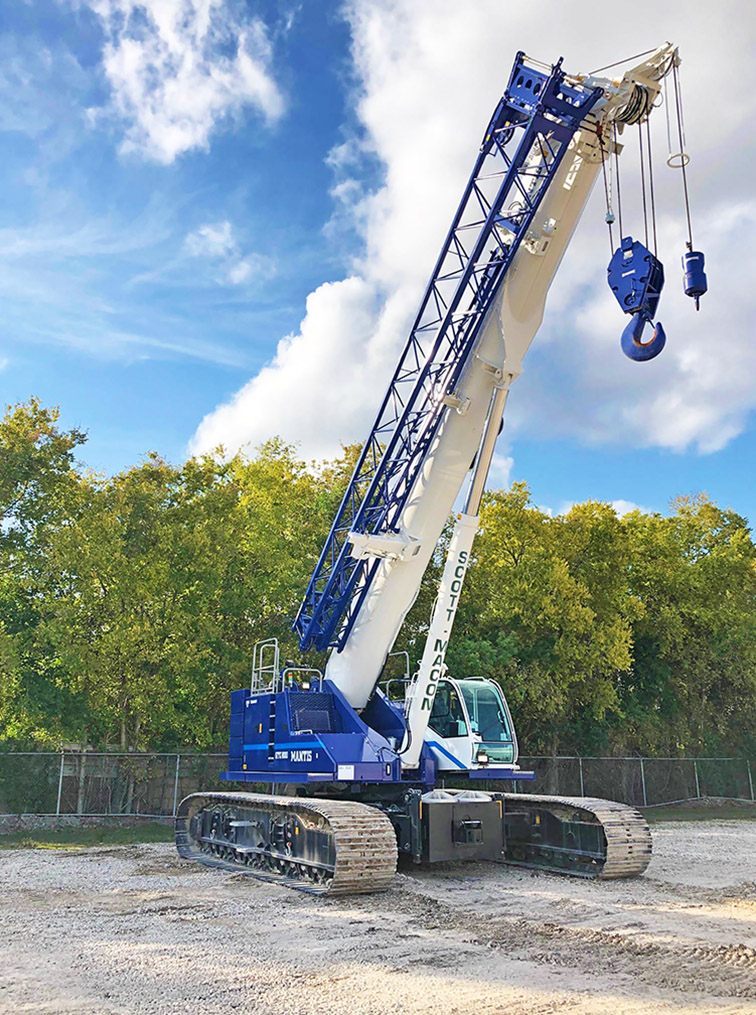

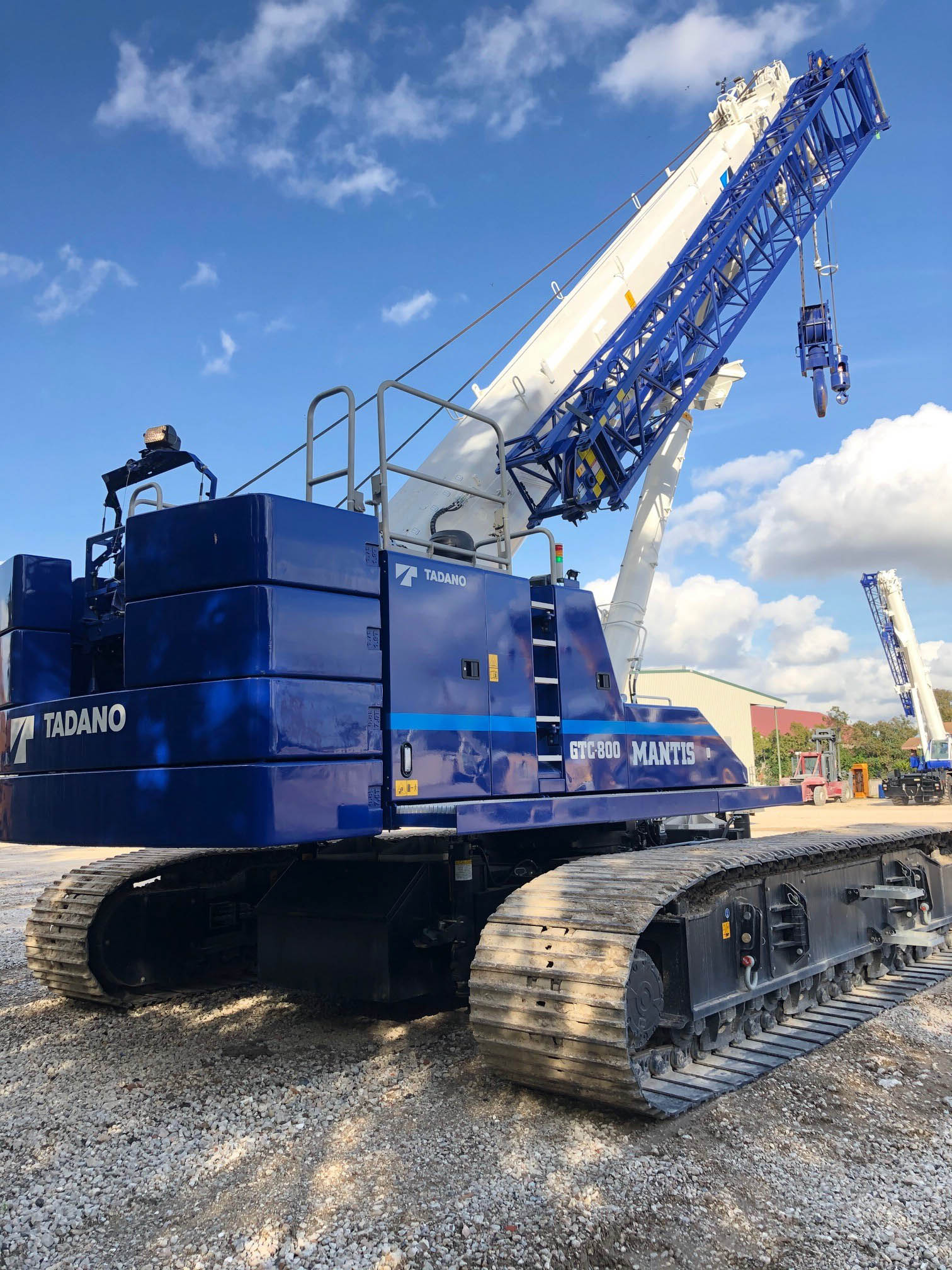

Tadano Mantis GTC-800 Hydraulic Crawler Cranes
The Tadano Mantis GTC-800 is an 88-ton capacity tele-boom crawler crane. With a 180,171 lb. gross vehicle mass and a Cummins QSB6.7 Diesel engine, the GTC-800 also comes equipped with the Tadano AML-C LMI system and HelloNet Telematics, among other features. The load moment indicator’s LCD screen continuously displays working boom length, boom angle, working load radius, tip height, and more.
Jib and Boom
The Tadano Mantis GTC-800 has a five-section, full power telescopic boom with a maximum length of 141.1 feet. 33.1 ft/ 58.1 ft. bi-fold jib offsets are also included with the crane value package.
| Product Type | Hydraulic Crawler Cranes |
| Manufacturer | Tadano Mantis |
| Condition | New |
| Model | GTC-800 |
| Year of Manufacture | 2019 |
| Serial Number | 800-133 |
| Maximum Capacity | 88 tons |
| Maximum Boom Length (ft) | 141' |
| Maximum Tip Height (ft) | 198' |
| Maximum Jib Length (ft) | 58' |
| Engine | Cummins QSB6.7 Tier 4f Diesel Engine |
| Tire or Track | Track |
| Maximum Travel Speed (mph) | 2.23 mph |
| Height | 13.1' |
| Overall Width Tracks Extended | 17.9 |
| Overall Width Tracks Retracted | 11.9 |
| Counterweight | 65,000 lbs. |
| Gross Vehicle Weight | 180,170.58 lbs. |
| Crane Chart | https://www.mantiscranes.com/cranes/cranes-globalmodel-gtc-800/ |
Tadano-Mantis-GTC-800-Tech-Sheet.pdf
