Tadano Mantis GTC-900 Hydraulic Crawler Cranes
| Category | Crawler Cranes |
| Product Type | Hydraulic Crawler Cranes |
| Manufacturer | Tadano Mantis |
| Condition | New |
| Model | GTC-900 |
| Year of Manufacture | 2023 |
| Serial Number | 800-192 |
| Maximum Capacity | 90 tons |
| Maximum Boom Length (ft) | 141.1' |
| Maximum Tip Height (ft) | 198' |
| Maximum Jib Length (ft) | 33.1' |
| Engine | Cummins B6.7 Engine |
| Tire or Track | Track |
| Maximum Travel Speed (mph) | 2.1 mph |
| Height | 13.1' |
| Overall Width Tracks Extended | 17.10' |
| Overall Width Tracks Retracted | 11.9' |
| Gross Vehicle Weight | 180,171 lbs. |

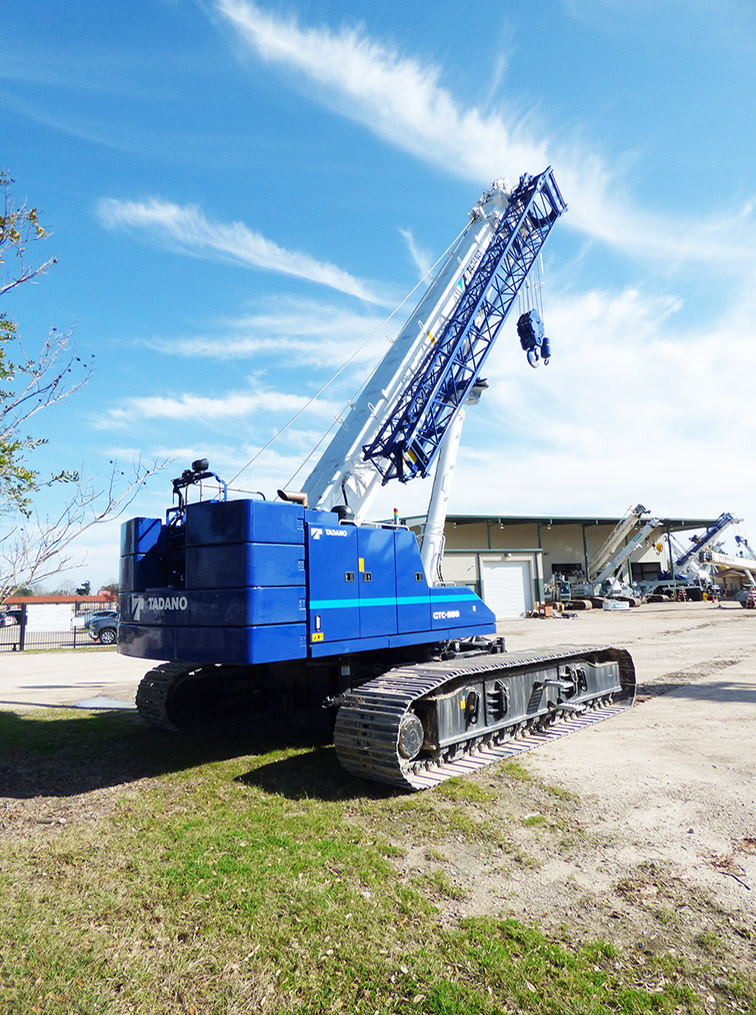

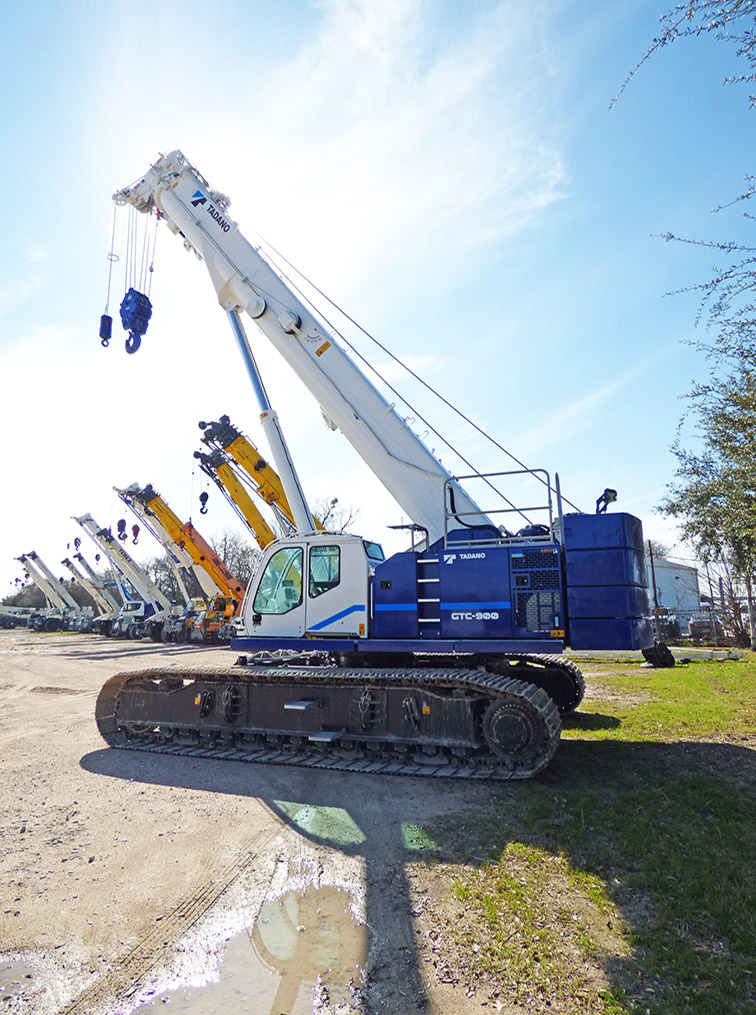

The 2023 Tadano Mantis GTC-900 is a 90 ton telescopic boom crawler crane. With a 180,171 lb. gross vehicle mass and a Cummins B6.7 engine, the GTC-900 comes equipped with the Tadano AML-C LMI system and HELLO-NET telematics system. The load moment indicator’s LCD screen continuously displays working boom length, boom angle, working load radius, maximum permissible load, tip height, and more.
Jib and Boom

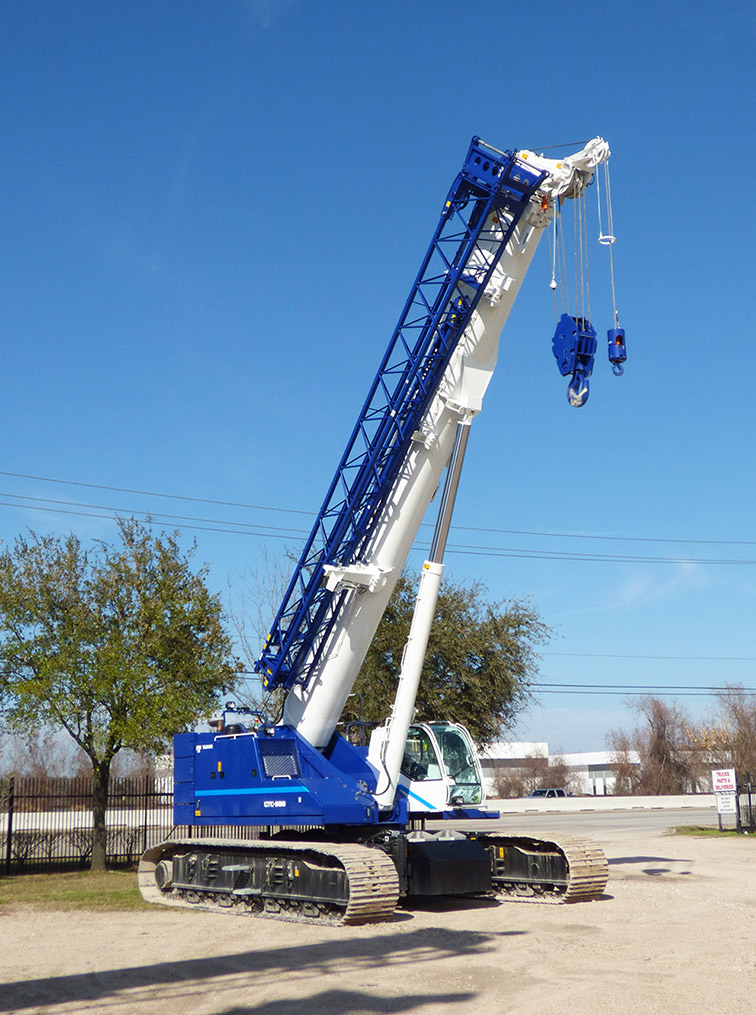

The Tadano Mantis GTC-900 has a five-section, full power telescopic boom with a maximum 141.1′ length. It also comes with a 33.1′ bi-fold jib.
For additional information or to receive an official Scott-Macon Equipment sales quote, contact us today.
Tadano-Mantis-GTC-900-Crawler-Cranes-Spec-Sheet.pdf
